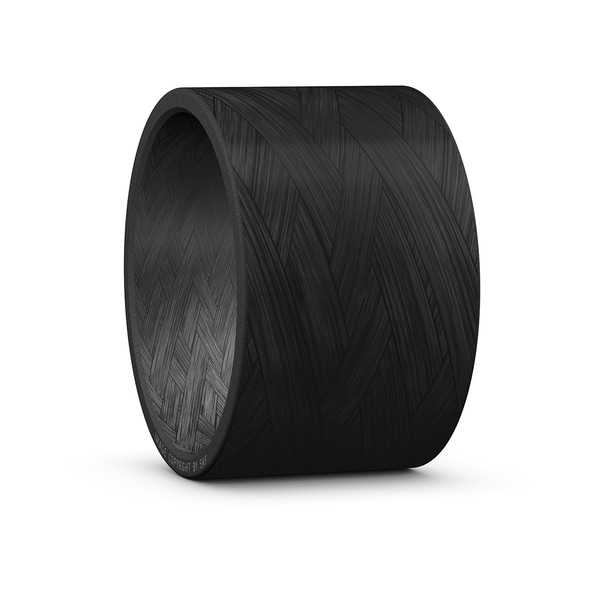

SKF PWM657575 Plain sleeve bushing
Pricing
Request a quote
We reply within 24 hours
Product Description
SKF PWM657575 plain sleeve bushing. Maintenance-free plain sleeve bushing — steel-backed sintered-bronze / PTFE composite (PCM series), steel-backed acetal composite (PCMF / PSM), or solid bronze (PBM / PBMF). Handles low-to-moderate sliding speed with grease, oil, water or dry running per material selection. Dimensioned to ISO 3547 metric wrapped bushings.
Technical Specifications
- Type
- Plain sleeve bushing
- Designation
- SKF PWM657575
- HS code
- 8483.30
- Bore diameter
- 65 mm
- Outside diameter
- 75 mm
- Width
- 75 mm
- Basic dynamic load rating
- 680 kN
- Basic static load rating
- 965 kN
- Design
- Straight
- Material
- Filament wound
- Relubrication feature
- Without
- Product net weight
- 0.15 kg
- eClass code
- 23-05-01-91
- UNSPSC code
- 31171605
Standards & Compliance
- Standard
- SKF designation convention (see description for governing ISO / DIN)
- Material
- As declared by SKF designation suffix
- Temperature Range
- Per SKF product data
- HS Code
- 8483.30
Cross References
- GGB 657575
- IGUS 657575
- OilesⓇ 657575
- Bunting 657575
- Equivalent: 657575 (GGB)
- Equivalent: 657575 (IGUS)
- Equivalent: 657575 (OilesⓇ)
- Equivalent: 657575 (Bunting)
Compatibility & Fitment
Interchange with peer OEM equivalents on identical boundary plan and execution — confirm cage, clearance, sealing and precision-class suffix before substitution.
Product Documentation
More from SKF
SKF
SKF OR249.3X5.7-N70 O-ring / back-up ring
SKF
SKF WAT-100X105X15-E8D Hydraulic guide ring / wear ring / bearing strip
SKF
SKF PHC20B-2X10FT Roller chain
SKF
SKF PHG141-3M-6 Timing belt (synchronous drive belt)
SKF
SKF PHG8VX1180EP V-belt (wedge belt)
SKF
SKF PHP2SPB355TB V-belt pulley (sheave)
SKF
SKF PHP30L050RSB Timing belt pulley (synchronous sprocket)
SKF
SKF PHS08B-1TBH25 Metric roller-chain sprocket (ISO / DIN 8187)
Technical guides
- Plain Bearing Finder — Spherical Plain Bearings GE..E / GE..ES, Composite Bushes PCM / PCMF and Sintered Bronze Bushes PSM / PBM by Bore (SKF)
- SKF 81xxx Cylindrical Roller Thrust Bearing — Dimensions, Load Ratings & Interchange (81102 to 81140)
- SKF Deep Groove Ball Bearing Reference — 6000 / 6200 / 6300 / 6400 Series (Dimensions, Load Ratings, Interchange to FAG NSK NTN Timken)
Catalogue entry last verified: 2026-09-30. A manufacturer datasheet is attached to this entry — confirm application-critical values against it.
Frequently asked questions
- Where can I buy PWM657575?
- PWM657575 can be ordered from cballast.com as a SKF catalogue item: request a quotation on this page or email sales@cballast.com, and the order ships worldwide.
- What is the manufacturer part number for this SKF product?
- The manufacturer part number is PWM657575.
- What is the HS code for PWM657575?
- The customs tariff (HS) code for PWM657575 is 8483.30.
- Who manufactures PWM657575?
- PWM657575 is a SKF product in the Bearings & Power Transmission range.
- Is a datasheet available for PWM657575?
- Yes — the PWM657575 datasheet can be viewed and downloaded on this page.
- What is the minimum order quantity for PWM657575?
- The minimum order quantity is 1.
- Is PWM657575 available?
- Yes — PWM657575 is available to order: fulfilment is from supplier stock in cBallast's European network, dispatched directly from the warehouse to the customer, with the exact lead time stated in the quotation (reply within 24 hours).
