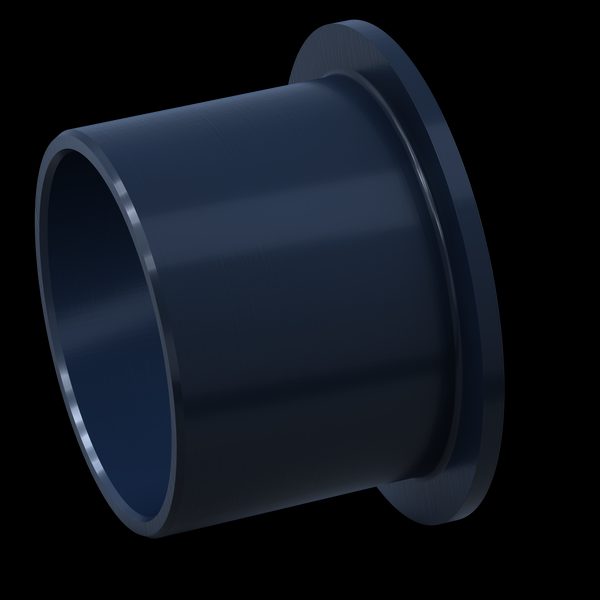

SKF PPMF101212 Plain sleeve bushing
Pricing
Request a quote
We reply within 24 hours
Product Description
SKF PPMF101212 plain sleeve bushing. Maintenance-free plain sleeve bushing — steel-backed sintered-bronze / PTFE composite (PCM series), steel-backed acetal composite (PCMF / PSM), or solid bronze (PBM / PBMF). Handles low-to-moderate sliding speed with grease, oil, water or dry running per material selection. Dimensioned to ISO 3547 metric wrapped bushings.
Technical Specifications
- Type
- Plain sleeve bushing
- Designation
- SKF PPMF101212
- HS code
- 8483.30
- Bore diameter
- 10 mm
- Outside diameter
- 12 mm
- Width
- 12 mm
- Flange diameter
- 18 mm
- Flange thickness
- 1 mm
- Design
- Flanged
- Material
- PTFE polyamide
- Relubrication feature
- Without
- Product net weight
- 0.000834 kg
- eClass code
- 23-05-01-90
- UNSPSC code
- 31171605
- Dimensions (d × D × B)
- 10 × 12 × 12 mm
Standards & Compliance
- Standard
- SKF designation convention (see description for governing ISO / DIN)
- Material
- As declared by SKF designation suffix
- Temperature Range
- Per SKF product data
- HS Code
- 8483.30
Cross References
- GGB 101212
- IGUS 101212
- OilesⓇ 101212
- Bunting 101212
- Alt. designation PPMF 101212
- Equivalent: 101212 (GGB)
- Equivalent: 101212 (IGUS)
- Equivalent: 101212 (OilesⓇ)
- Equivalent: 101212 (Bunting)
Compatibility & Fitment
Interchange with peer OEM equivalents on identical boundary plan and execution — confirm cage, clearance, sealing and precision-class suffix before substitution.
