SKF PHS60-1TBH23 ANSI roller-chain sprocket (ISO / DIN 8188)
Pricing
Request a quote
We reply within 24 hours
Product Description
SKF PHS60-1TBH23 ansi roller-chain sprocket (iso / din 8188). Machined-tooth roller-chain sprocket cut to the ANSI B29.1 / ISO 606 / DIN 8188 imperial roller chain series (25, 35, 40, 50, 60, 80, 100, 120, 140, 160, 180, 200, 240). Simplex, duplex or triplex tooth profile per fitted chain execution. Bored for QD taper bushing or pilot-bore. Hardened teeth standard.
Technical Specifications
- Type
- ANSI roller-chain sprocket (ISO / DIN 8188)
- Designation
- SKF PHS60-1TBH23
- HS code
- 8483.50
- Pitch
- 19.05 mm
- Outside diameter
- 150.11 mm
- Bore min
- 19.05 mm
- Bore max
- 50.8 mm
- Hub diameter
- 90.42 mm
- Width, total
- 31.75 mm
- Overall width, hub
- 31.75 mm
- Length through bore
- 31.8 mm
- Category
- ANSI roller chain sprocket
- Performance type
- Simplex
- Sprocket type
- B
- Standard
- ANSI
- Mounting arrangement
- Taper bush
- Bushing number
- 2012
- Material
- Steel
- Number of teeth
- 23
- Treatment
- Hardened teeth
- Product net weight
- 1.41 kg
- eClass code
- 23-17-04-50
- UNSPSC code
- 31171901
Standards & Compliance
- Standard
- SKF designation convention (see description for governing ISO / DIN)
- Material
- As declared by SKF designation suffix
- Temperature Range
- Per SKF product data
- HS Code
- 8483.50
Cross References
- Renold 60123
- Tsubaki 60123
- Martin Sprocket 60123
- Rexnord 60123
- Equivalent: 60123 (Renold)
- Equivalent: 60123 (Tsubaki)
- Equivalent: 60123 (Martin Sprocket)
- Equivalent: 60123 (Rexnord)
Compatibility & Fitment
Interchange with peer OEM equivalents on identical boundary plan and execution — confirm cage, clearance, sealing and precision-class suffix before substitution.
Product Documentation
More from SKF
SKF

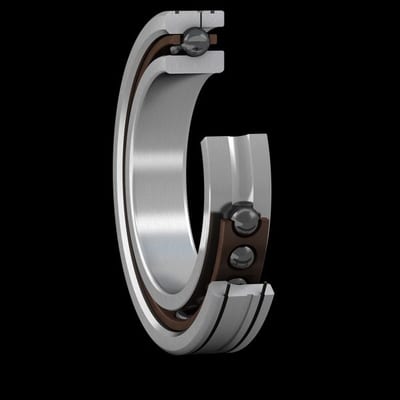

SKF 7018ACEGA/HCP4AL Super-precision angular contact ball bearing
