SKF PHS60-1BH8 ANSI roller-chain sprocket (ISO / DIN 8188)
Pricing
Request a quote
We reply within 24 hours
Product Description
SKF PHS60-1BH8 ansi roller-chain sprocket (iso / din 8188). Machined-tooth roller-chain sprocket cut to the ANSI B29.1 / ISO 606 / DIN 8188 imperial roller chain series (25, 35, 40, 50, 60, 80, 100, 120, 140, 160, 180, 200, 240). Simplex, duplex or triplex tooth profile per fitted chain execution. Bored for QD taper bushing or pilot-bore. Hardened teeth standard.
Technical Specifications
- Type
- ANSI roller-chain sprocket (ISO / DIN 8188)
- Designation
- SKF PHS60-1BH8
- HS code
- 8483.50
- Pitch
- 19.05 mm
- Outside diameter
- 57.4 mm
- Bore min
- 16 mm
- Bore max
- 16 mm
- Hub diameter
- 37.34 mm
- Width, total
- 31.75 mm
- Overall width, hub
- 31.75 mm
- Category
- ANSI roller chain sprocket
- Performance type
- Simplex
- Sprocket type
- B
- Standard
- ANSI
- Mounting arrangement
- Rough stock bore
- Material
- Steel
- Number of teeth
- 8
- Treatment
- Hardened teeth
- Product net weight
- 0.223 kg
- eClass code
- 23-17-04-50
- UNSPSC code
- 31171901
Standards & Compliance
- Standard
- SKF designation convention (see description for governing ISO / DIN)
- Material
- As declared by SKF designation suffix
- Temperature Range
- Per SKF product data
- HS Code
- 8483.50
Cross References
- Renold 6018
- Tsubaki 6018
- Martin Sprocket 6018
- Rexnord 6018
- Equivalent: 6018 (Renold)
- Equivalent: 6018 (Tsubaki)
- Equivalent: 6018 (Martin Sprocket)
- Equivalent: 6018 (Rexnord)
Compatibility & Fitment
Interchange with peer OEM equivalents on identical boundary plan and execution — confirm cage, clearance, sealing and precision-class suffix before substitution.
Product Documentation
More from SKF
SKF
SKF 7017CD/P4ATBTB Super-precision angular contact ball bearing
SKF
SKF TER826 Split pillow-block housing (SNL / SAF / SAW)
SKF
SKF S1S-110X130X13 Hydraulic rod seal / buffer seal
SKF

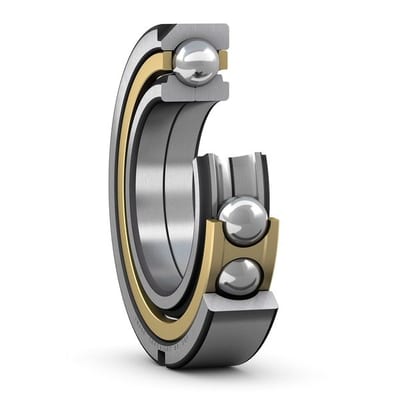

SKF KDN.ND040XP0 Thin-section ball bearing (Reali-Slim)
