SKF PHS35-2TB70 ANSI roller-chain sprocket (ISO / DIN 8188)
Pricing
Request a quote
We reply within 24 hours
Product Description
SKF PHS35-2TB70 ansi roller-chain sprocket (iso / din 8188). Machined-tooth roller-chain sprocket cut to the ANSI B29.1 / ISO 606 / DIN 8188 imperial roller chain series (25, 35, 40, 50, 60, 80, 100, 120, 140, 160, 180, 200, 240). Simplex, duplex or triplex tooth profile per fitted chain execution. Bored for QD taper bushing or pilot-bore. Hardened teeth standard.
Technical Specifications
- Type
- ANSI roller-chain sprocket (ISO / DIN 8188)
- Designation
- SKF PHS35-2TB70
- HS code
- 8483.50
- Pitch
- 9.53 mm
- Outside diameter
- 217.68 mm
- Bore min
- 12.7 mm
- Bore max
- 41.4 mm
- Hub diameter
- 92.2 mm
- Width, total
- 25.4 mm
- Overall width, hub
- 25.4 mm
- Length through bore
- 25.4 mm
- Category
- ANSI roller chain sprocket
- Performance type
- Duplex
- Sprocket type
- B
- Standard
- ANSI
- Mounting arrangement
- Taper bush
- Bushing number
- 1610
- Material
- Steel
- Number of teeth
- 70
- Product net weight
- 2.71 kg
- eClass code
- 23-17-04-50
- UNSPSC code
- 31171901
Standards & Compliance
- Standard
- SKF designation convention (see description for governing ISO / DIN)
- Material
- As declared by SKF designation suffix
- Temperature Range
- Per SKF product data
- HS Code
- 8483.50
Cross References
- Renold 35270
- Tsubaki 35270
- Martin Sprocket 35270
- Rexnord 35270
- Equivalent: 35270 (Renold)
- Equivalent: 35270 (Tsubaki)
- Equivalent: 35270 (Martin Sprocket)
- Equivalent: 35270 (Rexnord)
Compatibility & Fitment
Interchange with peer OEM equivalents on identical boundary plan and execution — confirm cage, clearance, sealing and precision-class suffix before substitution.
Product Documentation
More from SKF
SKF
SKF YEL206-103-2F Insert bearing (YAR / YET / YSA / YEL)
SKF
SKF PER.5204RRF57-A Double-row angular contact ball bearing
SKF
SKF FRB12/290 Bearing housing accessory
SKF
SKF PWB85X97.2X7.1 Hydraulic rod wiper seal
SKF
SKF 7008CE/HCP4AH1DGA Super-precision angular contact ball bearing
SKF
SKF MD250X225X25.4X12.7-L Hydraulic piston seal
SKF

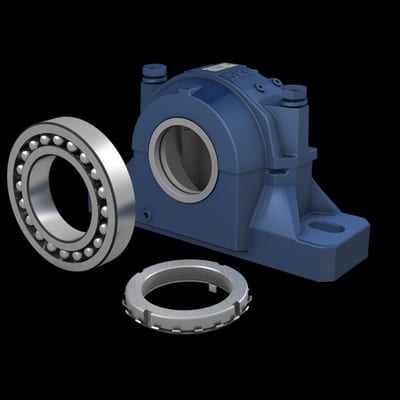

SKF SAF1315 Split pillow-block housing (SNL / SAF / SAW)
