SKF PHS25-1B22 ANSI roller-chain sprocket (ISO / DIN 8188)
Pricing
Request a quote
We reply within 24 hours
Product Description
SKF PHS25-1B22 ansi roller-chain sprocket (iso / din 8188). Machined-tooth roller-chain sprocket cut to the ANSI B29.1 / ISO 606 / DIN 8188 imperial roller chain series (25, 35, 40, 50, 60, 80, 100, 120, 140, 160, 180, 200, 240). Simplex, duplex or triplex tooth profile per fitted chain execution. Bored for QD taper bushing or pilot-bore. Hardened teeth standard.
Technical Specifications
- Type
- ANSI roller-chain sprocket (ISO / DIN 8188)
- Designation
- SKF PHS25-1B22
- HS code
- 8483.50
- Pitch
- 6.35 mm
- Outside diameter
- 48.01 mm
- Bore min
- 6.35 mm
- Bore max
- 23.88 mm
- Hub diameter
- 36.58 mm
- Width, total
- 16 mm
- Overall width, hub
- 16 mm
- Category
- ANSI roller chain sprocket
- Performance type
- Simplex
- Sprocket type
- B
- Standard
- ANSI
- Mounting arrangement
- Rough stock bore
- Material
- Steel
- Number of teeth
- 22
- Product net weight
- 0.129 kg
- eClass code
- 23-17-04-50
- UNSPSC code
- 31171901
Standards & Compliance
- Standard
- SKF designation convention (see description for governing ISO / DIN)
- Material
- As declared by SKF designation suffix
- Temperature Range
- Per SKF product data
- HS Code
- 8483.50
Cross References
- Renold 25122
- Tsubaki 25122
- Martin Sprocket 25122
- Rexnord 25122
- Equivalent: 25122 (Renold)
- Equivalent: 25122 (Tsubaki)
- Equivalent: 25122 (Martin Sprocket)
- Equivalent: 25122 (Rexnord)
Compatibility & Fitment
Interchange with peer OEM equivalents on identical boundary plan and execution — confirm cage, clearance, sealing and precision-class suffix before substitution.
Product Documentation
More from SKF
SKF

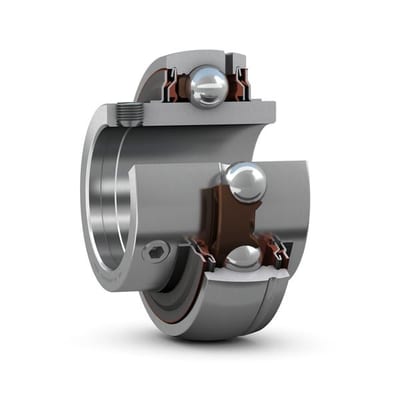

SKF YAR206-2RF/HV Insert bearing (YAR / YET / YSA / YEL)
SKF
SKF ERF939 Bearing housing accessory
SKF

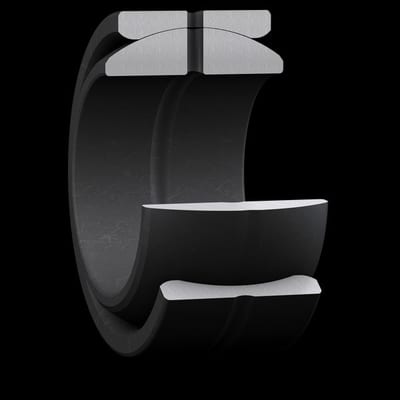

SKF GEZ212ES-2RS Radial spherical plain bearing
SKF
SKF PA160X175X9X12 Hydraulic rod wiper seal
SKF
SKF 7007ACEGA/HCP4A Super-precision angular contact ball bearing
SKF

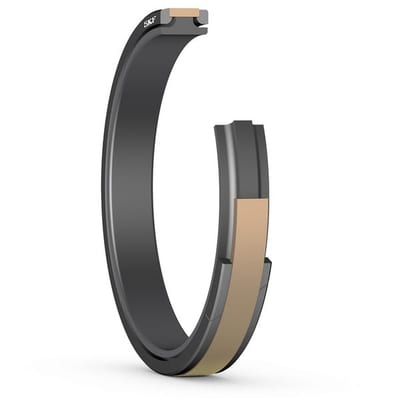

SKF LCP6-13000-ND1 Hydraulic piston seal
SKF

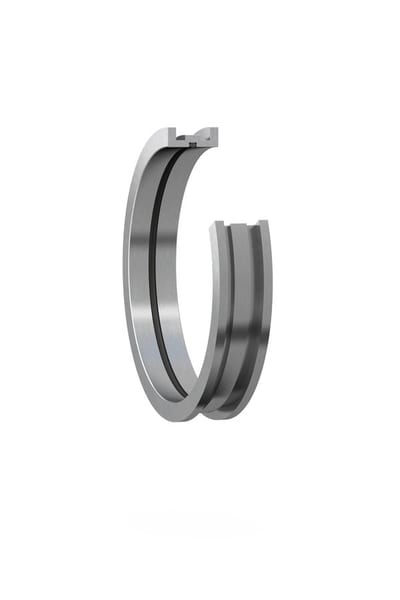

SKF LOR584 Split pillow-block housing (SNL / SAF / SAW)
