SKF PHS160-1C54 ANSI roller-chain sprocket (ISO / DIN 8188)
Pricing
Request a quote
We reply within 24 hours
Product Description
SKF PHS160-1C54 ansi roller-chain sprocket (iso / din 8188). Machined-tooth roller-chain sprocket cut to the ANSI B29.1 / ISO 606 / DIN 8188 imperial roller chain series (25, 35, 40, 50, 60, 80, 100, 120, 140, 160, 180, 200, 240). Simplex, duplex or triplex tooth profile per fitted chain execution. Bored for QD taper bushing or pilot-bore. Hardened teeth standard.
Technical Specifications
- Type
- ANSI roller-chain sprocket (ISO / DIN 8188)
- Designation
- SKF PHS160-1C54
- HS code
- 8483.50
- Pitch
- 50.8 mm
- Outside diameter
- 902.72 mm
- Bore min
- 38.1 mm
- Bore max
- 139.7 mm
- Hub diameter
- 203.2 mm
- Width, total
- 127 mm
- Overall width, hub
- 127 mm
- Category
- ANSI roller chain sprocket
- Performance type
- Simplex
- Sprocket type
- C
- Standard
- ANSI
- Mounting arrangement
- Rough stock bore
- Material
- Steel
- Number of teeth
- 54
- Product net weight
- 125 kg
- eClass code
- 23-17-04-50
- UNSPSC code
- 31171901
Standards & Compliance
- Standard
- SKF designation convention (see description for governing ISO / DIN)
- Material
- As declared by SKF designation suffix
- Temperature Range
- Per SKF product data
- HS Code
- 8483.50
Cross References
- Renold 160154
- Tsubaki 160154
- Martin Sprocket 160154
- Rexnord 160154
- Equivalent: 160154 (Renold)
- Equivalent: 160154 (Tsubaki)
- Equivalent: 160154 (Martin Sprocket)
- Equivalent: 160154 (Rexnord)
Compatibility & Fitment
Interchange with peer OEM equivalents on identical boundary plan and execution — confirm cage, clearance, sealing and precision-class suffix before substitution.
Product Documentation
More from SKF
SKF
SKF XGG1112KRRB Insert bearing (YAR / YET / YSA / YEL)
SKF
SKF ER401 Bearing housing accessory
SKF
SKF GEH60TXG3A-2LS Radial spherical plain bearing
SKF
SKF MCW-1500-H9B Hydraulic rod wiper seal
SKF
SKF 7006ACD/P4ADBC Super-precision angular contact ball bearing
SKF

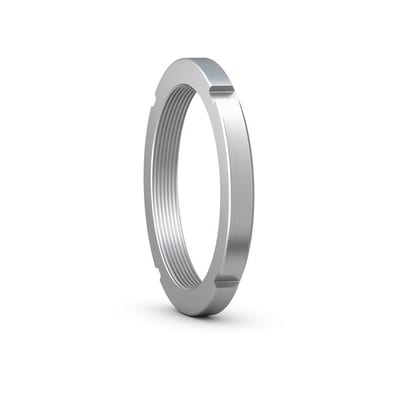

SKF N44 Bearing lock nut (keyway type)
