SKF PHS100-1TB54 ANSI roller-chain sprocket (ISO / DIN 8188)
Pricing
Request a quote
We reply within 24 hours
Product Description
SKF PHS100-1TB54 ansi roller-chain sprocket (iso / din 8188). Machined-tooth roller-chain sprocket cut to the ANSI B29.1 / ISO 606 / DIN 8188 imperial roller chain series (25, 35, 40, 50, 60, 80, 100, 120, 140, 160, 180, 200, 240). Simplex, duplex or triplex tooth profile per fitted chain execution. Bored for QD taper bushing or pilot-bore. Hardened teeth standard.
Technical Specifications
- Type
- ANSI roller-chain sprocket (ISO / DIN 8188)
- Designation
- SKF PHS100-1TB54
- HS code
- 8483.50
- Pitch
- 31.75 mm
- Outside diameter
- 564.13 mm
- Bore min
- 31.75 mm
- Bore max
- 76.2 mm
- Hub diameter
- 133.35 mm
- Width, total
- 50.8 mm
- Overall width, hub
- 50.8 mm
- Length through bore
- 50.8 mm
- Category
- ANSI roller chain sprocket
- Performance type
- Simplex
- Sprocket type
- B
- Standard
- ANSI
- Mounting arrangement
- Taper bush
- Bushing number
- 3020
- Material
- Steel
- Number of teeth
- 54
- Product net weight
- 28.2 kg
- eClass code
- 23-17-04-50
- UNSPSC code
- 31171901
Standards & Compliance
- Standard
- SKF designation convention (see description for governing ISO / DIN)
- Material
- As declared by SKF designation suffix
- Temperature Range
- Per SKF product data
- HS Code
- 8483.50
Cross References
- Renold 100154
- Tsubaki 100154
- Martin Sprocket 100154
- Rexnord 100154
- Equivalent: 100154 (Renold)
- Equivalent: 100154 (Tsubaki)
- Equivalent: 100154 (Martin Sprocket)
- Equivalent: 100154 (Rexnord)
Compatibility & Fitment
Interchange with peer OEM equivalents on identical boundary plan and execution — confirm cage, clearance, sealing and precision-class suffix before substitution.
Product Documentation
More from SKF
SKF

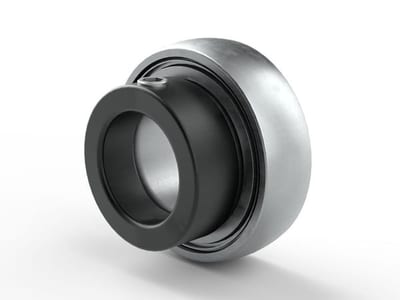

SKF PER.HC206AT-A Insert bearing (YAR / YET / YSA / YEL)
SKF

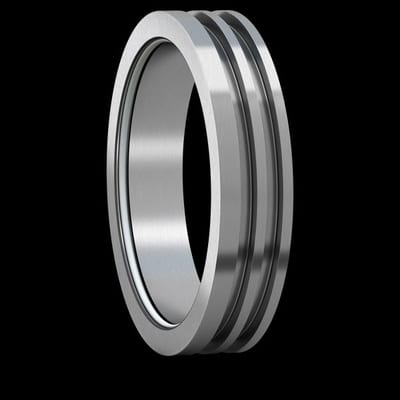

SKF A9508F-10 Bearing housing accessory
SKF

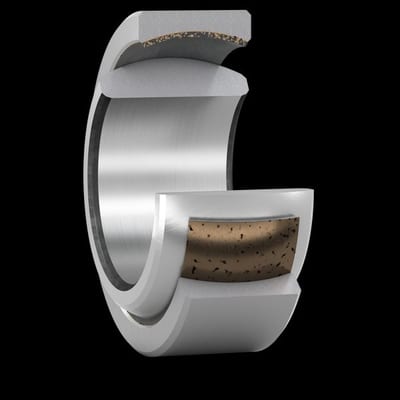

SKF GE30C Radial spherical plain bearing
SKF
SKF DTW-95X105X7-J2G Hydraulic rod wiper seal
SKF

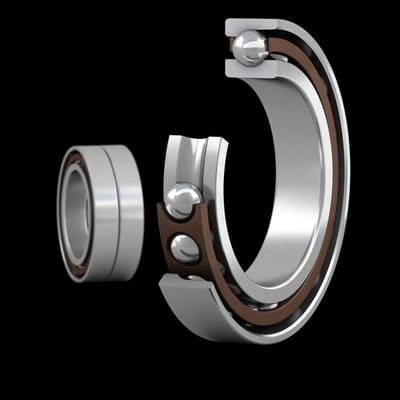

SKF 7003ACD/P4ADBA Super-precision angular contact ball bearing
SKF
SKF KM36 Bearing lock nut (keyway type)
SKF
SKF CUT230X209X8.1 Hydraulic piston seal
SKF

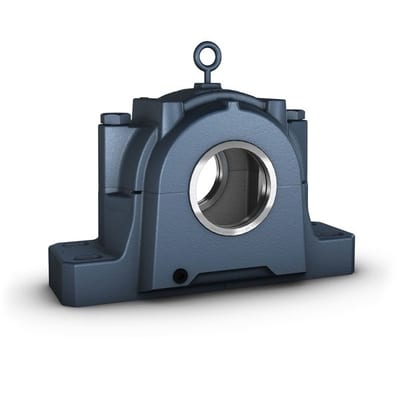

SKF FSAF22515TLC Split pillow-block housing (SNL / SAF / SAW)
