SKF PHS08B-1TB29 Metric roller-chain sprocket (ISO / DIN 8187)
Pricing
Request a quote
We reply within 24 hours
Product Description
SKF PHS08B-1TB29 metric roller-chain sprocket (iso / din 8187). Machined-tooth roller-chain sprocket cut to the ISO 606 / DIN 8187 metric roller chain series (04B, 05B, 06B, 08B, 10B, 12B, 16B, 20B, 24B). Simplex, duplex or triplex tooth profile per fitted chain execution. Bored for taper-lock bushing or pilot-bore. Hardened teeth (case-hardened C45E) standard.
Technical Specifications
- Type
- Metric roller-chain sprocket (ISO / DIN 8187)
- Designation
- SKF PHS08B-1TB29
- HS code
- 8483.50
- Pitch
- 12.7 mm
- Pitch diameter
- 117.46 mm
- Bore min
- 14 mm
- Bore max
- 50.8 mm
- Hub diameter
- 90 mm
- Width, total
- 32 mm
- Length through bore
- 32 mm
- Category
- Metric roller chain sprocket
- Performance type
- Simplex
- Sprocket type
- B
- Standard
- BS
- Mounting arrangement
- Taper bush
- Bushing number
- 2012
- Material
- Steel
- Number of teeth
- 29
- Product net weight
- 0.838 kg
- eClass code
- 23-17-04-50
- UNSPSC code
- 31171901
Standards & Compliance
- Standard
- SKF designation convention (see description for governing ISO / DIN)
- Material
- As declared by SKF designation suffix
- Temperature Range
- Per SKF product data
- HS Code
- 8483.50
Cross References
- Renold 08129
- Tsubaki 08129
- Martin Sprocket 08129
- Rexnord 08129
- Equivalent: 08129 (Renold)
- Equivalent: 08129 (Tsubaki)
- Equivalent: 08129 (Martin Sprocket)
- Equivalent: 08129 (Rexnord)
Compatibility & Fitment
Interchange with peer OEM equivalents on identical boundary plan and execution — confirm cage, clearance, sealing and precision-class suffix before substitution.
Product Documentation
More from SKF
SKF
SKF PHS40-1AH31 ANSI roller-chain sprocket (ISO / DIN 8188)
SKF

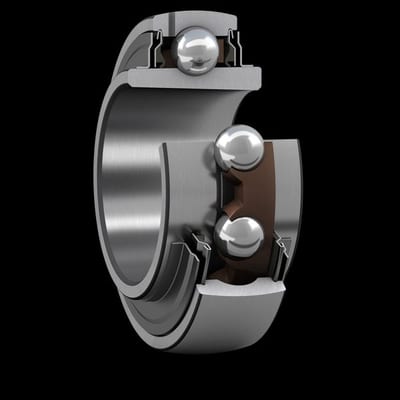

SKF YSA206-2FK Insert bearing (YAR / YET / YSA / YEL)
SKF
SKF FRB4/460 Bearing housing accessory
SKF
SKF 7009CE/HCP4A Super-precision angular contact ball bearing
SKF
SKF MPV-80X59X8.1 Hydraulic piston seal
SKF

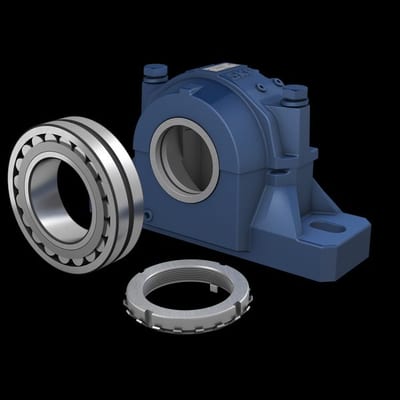

SKF SAF22312 Split pillow-block housing (SNL / SAF / SAW)
