SKF PHS06B-3BH17 Metric roller-chain sprocket (ISO / DIN 8187)
Pricing
Request a quote
We reply within 24 hours
Product Description
SKF PHS06B-3BH17 metric roller-chain sprocket (iso / din 8187). Machined-tooth roller-chain sprocket cut to the ISO 606 / DIN 8187 metric roller chain series (04B, 05B, 06B, 08B, 10B, 12B, 16B, 20B, 24B). Simplex, duplex or triplex tooth profile per fitted chain execution. Bored for taper-lock bushing or pilot-bore. Hardened teeth (case-hardened C45E) standard.
Technical Specifications
- Type
- Metric roller-chain sprocket (ISO / DIN 8187)
- Designation
- SKF PHS06B-3BH17
- HS code
- 8483.50
- Pitch
- 9.52 mm
- Pitch diameter
- 51.83 mm
- Bore min
- 12 mm
- Bore max
- 24 mm
- Hub diameter
- 40 mm
- Width, total
- 35 mm
- Category
- Metric roller chain sprocket
- Performance type
- Triplex
- Sprocket type
- B
- Standard
- BS
- Mounting arrangement
- Rough stock bore
- Material
- Steel
- Number of teeth
- 17
- Treatment
- Hardened teeth
- Product net weight
- 0.513 kg
- eClass code
- 23-17-04-50
- UNSPSC code
- 31171901
Standards & Compliance
- Standard
- SKF designation convention (see description for governing ISO / DIN)
- Material
- As declared by SKF designation suffix
- Temperature Range
- Per SKF product data
- HS Code
- 8483.50
Cross References
- Renold 06317
- Tsubaki 06317
- Martin Sprocket 06317
- Rexnord 06317
- Equivalent: 06317 (Renold)
- Equivalent: 06317 (Tsubaki)
- Equivalent: 06317 (Martin Sprocket)
- Equivalent: 06317 (Rexnord)
Compatibility & Fitment
Interchange with peer OEM equivalents on identical boundary plan and execution — confirm cage, clearance, sealing and precision-class suffix before substitution.
Product Documentation
More from SKF
SKF
SKF PHS25-1B45 ANSI roller-chain sprocket (ISO / DIN 8188)
SKF

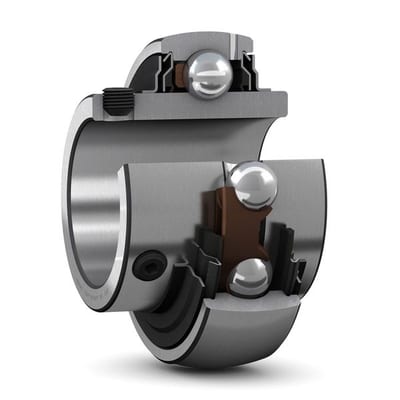

SKF YAR207-105-2F Insert bearing (YAR / YET / YSA / YEL)
SKF
SKF ERF972 Bearing housing accessory
SKF

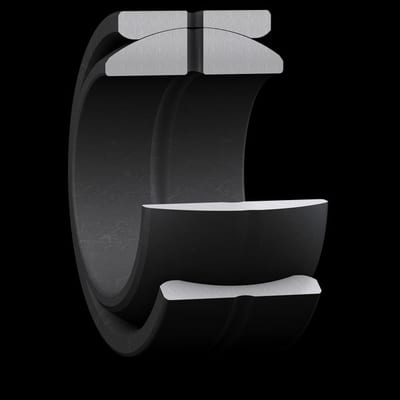

SKF GEZ308ES-2RS Radial spherical plain bearing
