SKF PHP168-8M-50RSB Timing belt pulley (synchronous sprocket)
Pricing
Request a quote
We reply within 24 hours
Product Description
SKF PHP168-8M-50RSB timing belt pulley (synchronous sprocket). Steel or aluminium synchronous drive pulley cut to match a paired timing-belt tooth profile — MXL, XL, L, H, XH, HTD 3M / 5M / 8M / 14M, Poly Chain GT 8MGT / 14MGT. Flanged or unflanged. Bored for taper bushing or supplied pilot-bore for final machining. Dimensioned to ISO 5296 / DIN 7721.
Technical Specifications
- Type
- Timing belt pulley (synchronous sprocket)
- Designation
- SKF PHP168-8M-50RSB
- HS code
- 8483.50
- Pitch
- 8 mm
- Belt width
- 50 mm
- Pitch diameter
- 427.81 mm
- Outside diameter
- 426.44 mm
- Bore min
- 20 mm
- Bore max
- 60 mm
- Width over grooves
- 60 mm
- Hub diameter
- 120 mm
- Category
- Timing belt pulleys
- Pulley type
- 3
- Section
- 8M
- Mounting arrangement
- Rough stock bore
- Material
- Cast iron
- Number of teeth
- 168
- Product net weight
- 17.4 kg
- eClass code
- 23-17-02-08
- UNSPSC code
- 24101613
Standards & Compliance
- Standard
- SKF designation convention (see description for governing ISO / DIN)
- Material
- As declared by SKF designation suffix
- Temperature Range
- Per SKF product data
- HS Code
- 8483.50
Cross References
- Martin Sprocket 168850
- Browning 168850
- Optibelt 168850
- Equivalent: 168850 (Martin Sprocket)
- Equivalent: 168850 (Browning)
- Equivalent: 168850 (Optibelt)
Compatibility & Fitment
Interchange with peer OEM equivalents on identical boundary plan and execution — confirm cage, clearance, sealing and precision-class suffix before substitution.
Product Documentation
More from SKF
SKF
SKF PHS06B-1A92 Metric roller-chain sprocket (ISO / DIN 8187)
SKF
SKF PHS100-2BH20 ANSI roller-chain sprocket (ISO / DIN 8188)
SKF
SKF PER.HC209-26XGN-A Insert bearing (YAR / YET / YSA / YEL)
SKF
SKF A9508F-121 Bearing housing accessory
SKF

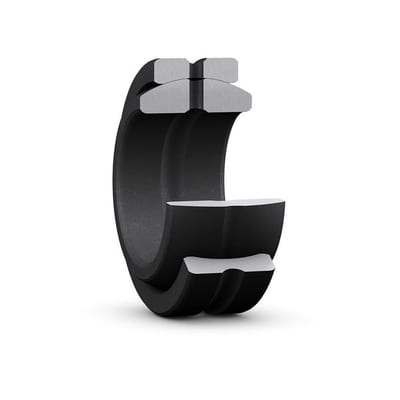

SKF GE40ES Radial spherical plain bearing
SKF

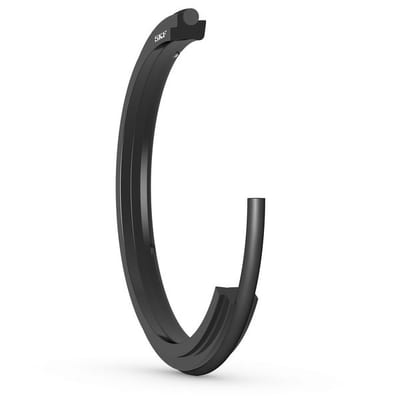

SKF DX-3375-J2X Hydraulic rod wiper seal
