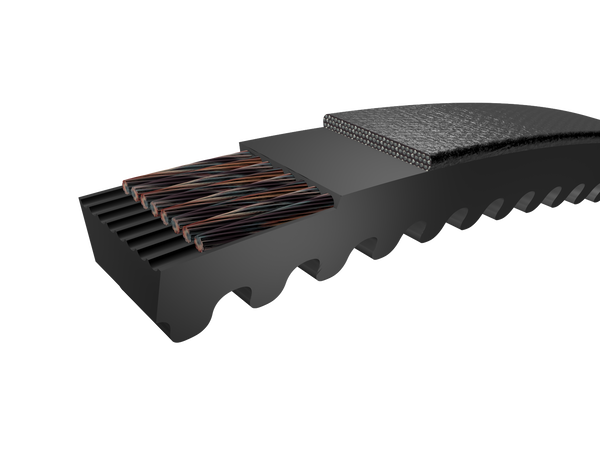

SKF PHGXPA1000EP V-belt (wedge belt)
Pricing
Request a quote
We reply within 24 hours
Product Description
SKF PHGXPA1000EP v-belt (wedge belt). Classical (A, B, C, D, E) or narrow-section (SPZ, SPA, SPB, SPC / 3V, 5V, 8V) endless V-belt for friction-drive power transmission. Polyester or aramid tension cord in an oil-and-heat-resistant chloroprene body. Dimensioned to ISO 4184 / RMA IP-20 classical and ISO 4184 / RMA IP-22 narrow. Set-matched belts identified by a common numeric drive-number code so multi-belt drives share tension.
Technical Specifications
- Type
- V-belt (wedge belt)
- Designation
- SKF PHGXPA1000EP
- HS code
- 4010.34
- Height
- 10 mm
- Pitch length
- 1000 mm
- Width, top
- 12.7 mm
- Cogged
- Yes
- Material
- EPDM rubber (ethylene propylene diene monomer )
- Section
- XPA
- Tensile cord
- Polyester
- Wrapped Cover
- No
- Product net weight
- 0.0924 kg
- eClass code
- 23-17-02-90
- UNSPSC code
- 26111504
Standards & Compliance
- Standard
- SKF designation convention (see description for governing ISO / DIN)
- Material
- As declared by SKF designation suffix
- Temperature Range
- Per SKF product data
- HS Code
- 4010.34
Cross References
- Gates 1000
- Continental / ContiTech 1000
- Optibelt 1000
- Bando 1000
- Equivalent: 1000 (Gates)
- Equivalent: 1000 (Continental / ContiTech)
- Equivalent: 1000 (Optibelt)
- Equivalent: 1000 (Bando)
Compatibility & Fitment
Interchange with peer OEM equivalents on identical boundary plan and execution — confirm cage, clearance, sealing and precision-class suffix before substitution.
