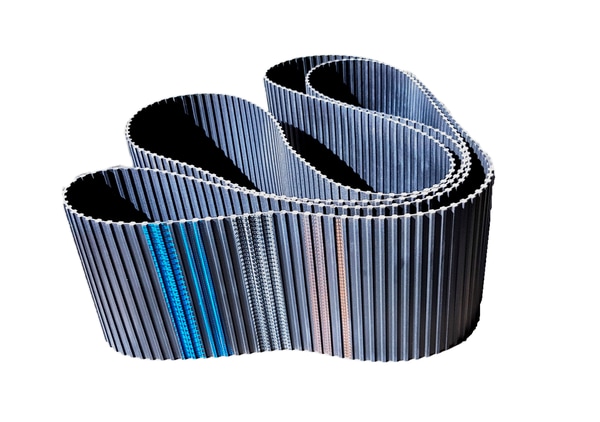

SKF PHGDB-T5-620-8 Timing belt (synchronous drive belt)
Pricing
Request a quote
We reply within 24 hours
Product Description
SKF PHGDB-T5-620-8 timing belt (synchronous drive belt). Synchronous drive belt engaging matched-pitch sprockets to transmit torque with a fixed shaft-to-shaft speed ratio and no slip. Trapezoidal (MXL / XL / L / H / XH / XXH), curvilinear (HTD / STD / RPP), and modified curvilinear (Poly Chain GT) tooth profiles. Tension member glass-fibre or aramid cord; body chloroprene or hydrogenated nitrile rubber (HNBR). Standards ISO 5296, ISO 13050, DIN 7721, RMA IP-24.
Technical Specifications
- Type
- Timing belt (synchronous drive belt)
- Designation
- SKF PHGDB-T5-620-8
- HS code
- 4010.34
- Pitch length
- 620 mm
- Thickness between teeth
- 1 mm
- Tooth angle
- 40 °
- Tooth depth
- 1.2 mm
- Tooth height
- 3.4 mm
- Tooth pitch
- 5 mm
- Width
- 8 mm
- Number of teeth
- 124
- Section
- DB-T5
- Sleeve
- No
- Product net weight
- 0.0147 kg
- eClass code
- 23-17-02-90
- UNSPSC code
- 26111504
Standards & Compliance
- Standard
- SKF designation convention (see description for governing ISO / DIN)
- Material
- As declared by SKF designation suffix
- Temperature Range
- Per SKF product data
- HS Code
- 4010.34
Cross References
- Gates 56208
- Continental / ContiTech 56208
- Optibelt 56208
- Megadyne 56208
- Bando 56208
- Equivalent: 56208 (Gates)
- Equivalent: 56208 (Continental / ContiTech)
- Equivalent: 56208 (Optibelt)
- Equivalent: 56208 (Megadyne)
- Equivalent: 56208 (Bando)
Compatibility & Fitment
Interchange with peer OEM equivalents on identical boundary plan and execution — confirm cage, clearance, sealing and precision-class suffix before substitution.
