SKF PHG1550-H-150 Timing belt (synchronous drive belt)
Pricing
Request a quote
We reply within 24 hours
Product Description
SKF PHG1550-H-150 timing belt (synchronous drive belt). Synchronous drive belt engaging matched-pitch sprockets to transmit torque with a fixed shaft-to-shaft speed ratio and no slip. Trapezoidal (MXL / XL / L / H / XH / XXH), curvilinear (HTD / STD / RPP), and modified curvilinear (Poly Chain GT) tooth profiles. Tension member glass-fibre or aramid cord; body chloroprene or hydrogenated nitrile rubber (HNBR). Standards ISO 5296, ISO 13050, DIN 7721, RMA IP-24.
Technical Specifications
- Type
- Timing belt (synchronous drive belt)
- Designation
- SKF PHG1550-H-150
- HS code
- 4010.34
- Pitch length
- 3937 mm
- Tooth angle
- 40 °
- Tooth depth
- 2.29 mm
- Tooth height
- 4.3 mm
- Tooth pitch
- 12.7 mm
- Width
- 38.1 mm
- Number of teeth
- 310
- Section
- H
- Sleeve
- No
- Product net weight
- 2.6 kg
- eClass code
- 23-17-02-90
- UNSPSC code
- 26111504
Standards & Compliance
- Standard
- SKF designation convention (see description for governing ISO / DIN)
- Material
- As declared by SKF designation suffix
- Temperature Range
- Per SKF product data
- HS Code
- 4010.34
Cross References
- Gates 1550150
- Continental / ContiTech 1550150
- Optibelt 1550150
- Megadyne 1550150
- Bando 1550150
- Equivalent: 1550150 (Gates)
- Equivalent: 1550150 (Continental / ContiTech)
- Equivalent: 1550150 (Optibelt)
- Equivalent: 1550150 (Megadyne)
- Equivalent: 1550150 (Bando)
Compatibility & Fitment
Interchange with peer OEM equivalents on identical boundary plan and execution — confirm cage, clearance, sealing and precision-class suffix before substitution.
Product Documentation
More from SKF
SKF
SKF PHGA67X5 V-belt (wedge belt)
SKF
SKF PHP3-B62TB V-belt pulley (sheave)
SKF
SKF PHP36H300TB Timing belt pulley (synchronous sprocket)
SKF
SKF PHS10B-1A76 Metric roller-chain sprocket (ISO / DIN 8187)
SKF
SKF PHS41-1B26 ANSI roller-chain sprocket (ISO / DIN 8188)
SKF
SKF 610VER V-Ring axial seal
SKF

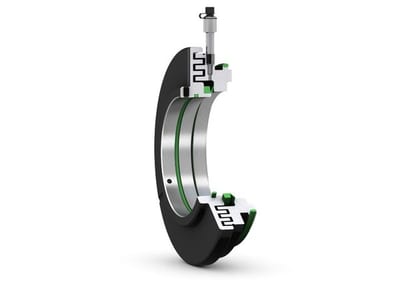

SKF TK532 Bearing housing accessory
