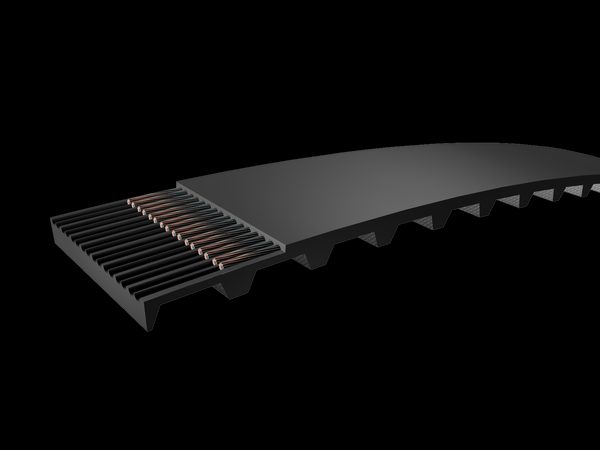

SKF PHG135-L-100 Timing belt (synchronous drive belt)
Pricing
Request a quote
We reply within 24 hours
Product Description
SKF PHG135-L-100 timing belt (synchronous drive belt). Synchronous drive belt engaging matched-pitch sprockets to transmit torque with a fixed shaft-to-shaft speed ratio and no slip. Trapezoidal (MXL / XL / L / H / XH / XXH), curvilinear (HTD / STD / RPP), and modified curvilinear (Poly Chain GT) tooth profiles. Tension member glass-fibre or aramid cord; body chloroprene or hydrogenated nitrile rubber (HNBR). Standards ISO 5296, ISO 13050, DIN 7721, RMA IP-24.
Technical Specifications
- Type
- Timing belt (synchronous drive belt)
- Designation
- SKF PHG135-L-100
- HS code
- 4010.34
- Pitch length
- 342.9 mm
- Tooth angle
- 40 °
- Tooth depth
- 1.91 mm
- Tooth height
- 3.6 mm
- Tooth pitch
- 9.525 mm
- Width
- 25.4 mm
- Number of teeth
- 36
- Section
- L
- Sleeve
- No
- Product net weight
- 0.12 kg
- eClass code
- 23-17-02-90
- UNSPSC code
- 26111504
Standards & Compliance
- Standard
- SKF designation convention (see description for governing ISO / DIN)
- Material
- As declared by SKF designation suffix
- Temperature Range
- Per SKF product data
- HS Code
- 4010.34
Cross References
- Gates 135100
- Continental / ContiTech 135100
- Optibelt 135100
- Megadyne 135100
- Bando 135100
- Equivalent: 135100 (Gates)
- Equivalent: 135100 (Continental / ContiTech)
- Equivalent: 135100 (Optibelt)
- Equivalent: 135100 (Megadyne)
- Equivalent: 135100 (Bando)
Compatibility & Fitment
Interchange with peer OEM equivalents on identical boundary plan and execution — confirm cage, clearance, sealing and precision-class suffix before substitution.
Product Documentation
More from SKF
SKF
SKF PHG8V2240X3 V-belt (wedge belt)
SKF
SKF PHP2-C240TB V-belt pulley (sheave)
SKF
SKF PHP28-8M-85RSB Timing belt pulley (synchronous sprocket)
SKF
SKF PHS08B-1BH38 Metric roller-chain sprocket (ISO / DIN 8187)
SKF
SKF PHS40-1A38 ANSI roller-chain sprocket (ISO / DIN 8188)
SKF
SKF YEL211-203-2F Insert bearing (YAR / YET / YSA / YEL)
SKF
SKF FRB16.5/270 Bearing housing accessory
SKF
SKF 7009ACD/P4AQBCB Super-precision angular contact ball bearing
Technical guides
Catalogue entry last verified: 2026-09-30. A manufacturer datasheet is attached to this entry — confirm application-critical values against it.
Frequently asked questions
- Where can I buy PHG135-L-100?
- PHG135-L-100 can be ordered from cballast.com as a SKF catalogue item: request a quotation on this page or email sales@cballast.com, and the order ships worldwide.
- What is the manufacturer part number for this SKF product?
- The manufacturer part number is PHG135-L-100.
- What is the HS code for PHG135-L-100?
- The customs tariff (HS) code for PHG135-L-100 is 4010.34.
- Who manufactures PHG135-L-100?
- PHG135-L-100 is a SKF product in the Bearings & Power Transmission range.
- Is a datasheet available for PHG135-L-100?
- Yes — the PHG135-L-100 datasheet can be viewed and downloaded on this page.
- What is the minimum order quantity for PHG135-L-100?
- The minimum order quantity is 1.
- Is PHG135-L-100 available?
- Yes — PHG135-L-100 is available to order: fulfilment is from supplier stock in cBallast's European network, dispatched directly from the warehouse to the customer, with the exact lead time stated in the quotation (reply within 24 hours).
