SKF PHC72B-1C/L Roller chain
Pricing
Request a quote
We reply within 24 hours
Product Description
SKF PHC72B-1C/L roller chain. Endless roller chain — heat-treated steel side plates on hardened steel pins and bushings with press-fitted rollers. Metric series to ISO 606 / DIN 8187 (04B, 05B, 06B, 08B, 10B, 12B, 16B, 20B, 24B); ANSI series to ISO 606 / DIN 8188 (25, 35, 40, 50, 60, 80, 100, 120, 140, 160, 180, 200, 240). Simplex, duplex or triplex construction. Standard, corrosion-resistant (nickel plated / stainless), high-strength and self-lubricating executions.
Technical Specifications
- Type
- Roller chain
- Designation
- SKF PHC72B-1C/L
- HS code
- 7315.11
- Pitch
- 114.3 mm
- Roller diameter max
- 72.39 mm
- Width between inner plates min
- 68.58 mm
- Pin diameter max
- 44.48 mm
- Plate height max
- 103.6 mm
- Plate thickness max
- 15 mm
- Chain number
- 72B-1
- Standard
- BS
- Link type
- Connecting link
- Category
- Transmission chains
- Material
- Carbon steel
- Weight per meter
- 60.8 kg
- Product net weight
- 8.42 kg
- eClass code
- 23-17-04-90
- UNSPSC code
- 26111505
Standards & Compliance
- Standard
- SKF designation convention (see description for governing ISO / DIN)
- Material
- As declared by SKF designation suffix
- Temperature Range
- Per SKF product data
- HS Code
- 7315.11
Cross References
- Renold 721
- Tsubaki 721
- Rexnord 721
- DID 721
- Equivalent: 721 (Renold)
- Equivalent: 721 (Tsubaki)
- Equivalent: 721 (Rexnord)
- Equivalent: 721 (DID)
Compatibility & Fitment
Interchange with peer OEM equivalents on identical boundary plan and execution — confirm cage, clearance, sealing and precision-class suffix before substitution.
Product Documentation
More from SKF
SKF
SKF PHG177-L-050 Timing belt (synchronous drive belt)
SKF
SKF PHGB111.5 V-belt (wedge belt)
SKF
SKF PHP4-3V650-SK V-belt pulley (sheave)
SKF
SKF PHP48H200RSB Timing belt pulley (synchronous sprocket)
SKF
SKF PHS10B-2BH38 Metric roller-chain sprocket (ISO / DIN 8187)
SKF
SKF PHS50-1TB40 ANSI roller-chain sprocket (ISO / DIN 8188)
SKF

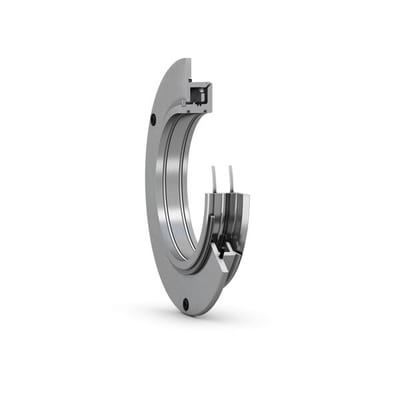

SKF TSN519U Bearing housing accessory
