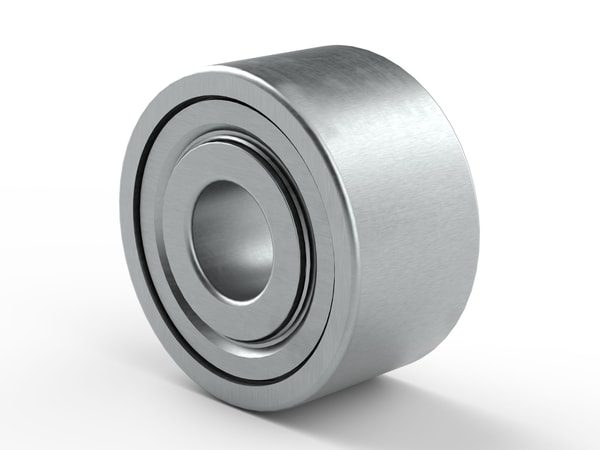

SKF PER.W5204-2RSTFPC3G6 Double-row angular contact ball bearing
Pricing
Request a quote
We reply within 24 hours
Product Description
SKF PER.W5204-2RSTFPC3G6 double-row angular contact ball bearing. Double-row angular contact ball bearing (32xx-2Z, 33xx, 52xx / 53xx) taking heavy combined radial and axial load in both directions from a single position. Contact angle 30° or 45°. Standard shielded (2Z) or contact-sealed (2RS1) execution. Suitable for pump impeller shafts, gearbox output shafts, propeller-shaft thrust ends on smaller marine gearboxes.
Technical Specifications
- Type
- Double-row angular contact ball bearing
- Designation
- SKF PER.W5204-2RSTFPC3G6
- HS code
- 8482.10
- Bore diameter
- 20 mm
- Outside diameter
- 47 mm
- Width
- 23.813 mm
- Basic dynamic load rating
- 19.1 kN
- Basic static load rating
- 11.8 kN
- Number of rows
- 2
- Sealing type
- Contact
- Lubricant
- Grease
- Indicative carbon footprint for new product
- 0.63 kg CO2e
- Product net weight
- 0.17 kg
Standards & Compliance
- Standard
- SKF designation convention (see description for governing ISO / DIN)
- Material
- As declared by SKF designation suffix
- Temperature Range
- Per SKF product data
- HS Code
- 8482.10
Cross References
- FAG 5204236
- NSK 5204236
- NTN 5204236
- Timken 5204236
- Koyo 5204236
- Equivalent: 5204236 (FAG)
- Equivalent: 5204236 (NSK)
- Equivalent: 5204236 (NTN)
- Equivalent: 5204236 (Timken)
- Equivalent: 5204236 (Koyo)
Compatibility & Fitment
Interchange with peer OEM equivalents on identical boundary plan and execution — confirm cage, clearance, sealing and precision-class suffix before substitution.
Product Documentation
More from SKF
SKF
SKF FRB14/320 Bearing housing accessory
SKF
SKF 7008FE/P4ADGA Super-precision angular contact ball bearing
SKF
SKF MD45X37X15.5-L Hydraulic piston seal
SKF
SKF SAF1515/C3 Split pillow-block housing (SNL / SAF / SAW)
SKF
SKF PTB-60X75X12.1-J1S Hydraulic rod seal / buffer seal
SKF
SKF SNP3176X13.15/16 Adapter sleeve
SKF
SKF KDN.K36008CP0 Thin-section ball bearing (Reali-Slim)
SKF
SKF PSMF202620A51 Plain sleeve bushing
Technical guides
Catalogue entry last verified: 2026-08-13. A manufacturer datasheet is attached to this entry — confirm application-critical values against it.
Frequently asked questions
- Where can I buy PER.W5204-2RSTFPC3G6?
- PER.W5204-2RSTFPC3G6 can be ordered from cballast.com as a SKF catalogue item: request a quotation on this page or email sales@cballast.com, and the order ships worldwide.
- What is the manufacturer part number for this SKF product?
- The manufacturer part number is PER.W5204-2RSTFPC3G6.
- What is the HS code for PER.W5204-2RSTFPC3G6?
- The customs tariff (HS) code for PER.W5204-2RSTFPC3G6 is 8482.10.
- Who manufactures PER.W5204-2RSTFPC3G6?
- PER.W5204-2RSTFPC3G6 is a SKF product in the Bearings & Power Transmission range.
- Is a datasheet available for PER.W5204-2RSTFPC3G6?
- Yes — the PER.W5204-2RSTFPC3G6 datasheet can be viewed and downloaded on this page.
- What is the minimum order quantity for PER.W5204-2RSTFPC3G6?
- The minimum order quantity is 1.
- Is PER.W5204-2RSTFPC3G6 available?
- Yes — PER.W5204-2RSTFPC3G6 is available to order: fulfilment is from supplier stock in cBallast's European network, dispatched directly from the warehouse to the customer, with the exact lead time stated in the quotation (reply within 24 hours).
