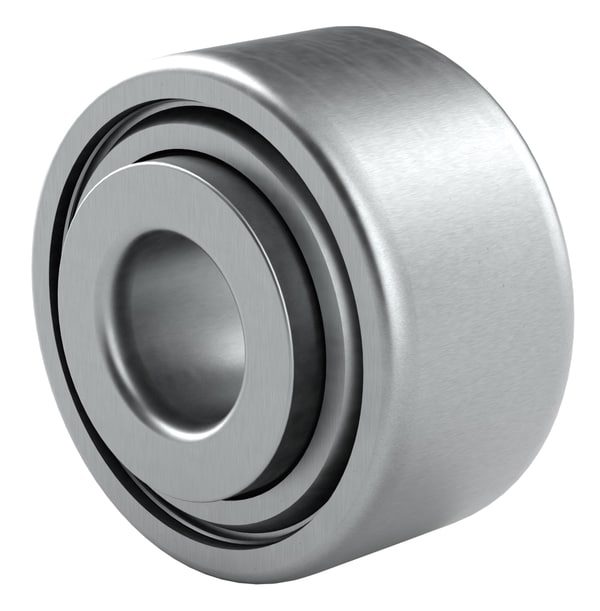

SKF PER.W5203RYY59 Double-row angular contact ball bearing
Pricing
Request a quote
We reply within 24 hours
Product Description
SKF PER.W5203RYY59 double-row angular contact ball bearing. Double-row angular contact ball bearing (32xx-2Z, 33xx, 52xx / 53xx) taking heavy combined radial and axial load in both directions from a single position. Contact angle 30° or 45°. Standard shielded (2Z) or contact-sealed (2RS1) execution. Suitable for pump impeller shafts, gearbox output shafts, propeller-shaft thrust ends on smaller marine gearboxes.
Technical Specifications
- Type
- Double-row angular contact ball bearing
- Designation
- SKF PER.W5203RYY59
- HS code
- 8482.10
- Bore diameter
- 16.129 mm
- Outside diameter
- 40 mm
- Width
- 24.5 mm
- Basic dynamic load rating
- 11 kN
- Basic static load rating
- 7.18 kN
- Number of rows
- 2
- Sealing type
- Contact
- Lubricant
- Grease
- Indicative carbon footprint for new product
- 0.44 kg CO2e
- Product net weight
- 0.12 kg
Standards & Compliance
- Standard
- SKF designation convention (see description for governing ISO / DIN)
- Material
- As declared by SKF designation suffix
- Temperature Range
- Per SKF product data
- HS Code
- 8482.10
Cross References
- FAG 520359
- NSK 520359
- NTN 520359
- Timken 520359
- Koyo 520359
- Equivalent: 520359 (FAG)
- Equivalent: 520359 (NSK)
- Equivalent: 520359 (NTN)
- Equivalent: 520359 (Timken)
- Equivalent: 520359 (Koyo)
Compatibility & Fitment
Interchange with peer OEM equivalents on identical boundary plan and execution — confirm cage, clearance, sealing and precision-class suffix before substitution.
