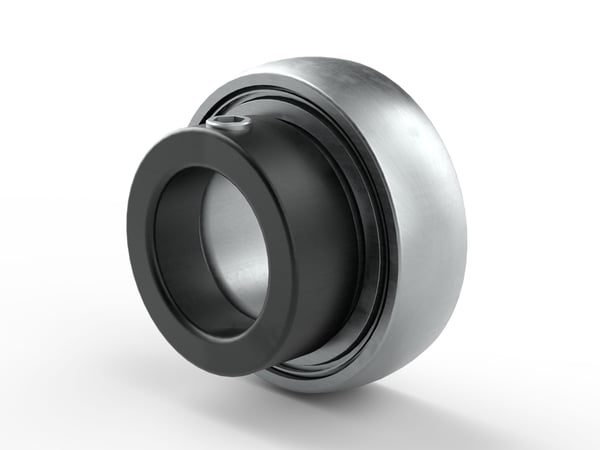

SKF PER.HCN306-25MMAT Insert bearing (YAR / YET / YSA / YEL)
Pricing
Request a quote
We reply within 24 hours
Product Description
SKF PER.HCN306-25MMAT insert bearing (yar / yet / ysa / yel). Spherical-outer-ring insert ball bearing suited to drop-in mounting in a pillow-block, flanged, take-up or tapped-base housing. Set-screw (YAR), eccentric locking collar (YET), adapter-sleeve (YSA), or grub-screw double-lock (YEL) shaft attachment per suffix. Sealed for life with grease; regreasable variants add a lubrication nipple to the outer ring.
Technical Specifications
- Type
- Insert bearing (YAR / YET / YSA / YEL)
- Designation
- SKF PER.HCN306-25MMAT
- HS code
- 8482.10
- Shaft diameter
- 25 mm
- Bore diameter
- 25 mm
- Outside diameter
- 72 mm
- Width, total
- 50 mm
- Width, inner ring
- 36.5 mm
- Width, outer ring
- 21 mm
- Basic dynamic load rating
- 26.7 kN
- Basic static load rating
- 15 kN
- Retaining feature, inner ring
- Eccentric collar
- Bore type
- Cylindrical
- Rolling elements
- Balls
- Outer ring type
- Spherical
- Inner ring extension
- On one side
- Rubber seating ring
- Without
- Material, bearing
- Bearing steel
- Coating
- Without
- Sealing
- Seal on both sides
- Sealing type
- Contact
- Lubricant
- Grease
- Relubrication feature
- Without
- Product net weight
- 0.7 kg
Standards & Compliance
- Standard
- SKF designation convention (see description for governing ISO / DIN)
- Material
- As declared by SKF designation suffix
- Temperature Range
- Per SKF product data
- HS Code
- 8482.10
Cross References
- NTN 30625
- NSK 30625
- FAG 30625
- Koyo 30625
- ASAHI 30625
- Equivalent: 30625 (NTN)
- Equivalent: 30625 (NSK)
- Equivalent: 30625 (FAG)
- Equivalent: 30625 (Koyo)
- Equivalent: 30625 (ASAHI)
Compatibility & Fitment
Interchange with peer OEM equivalents on identical boundary plan and execution — confirm cage, clearance, sealing and precision-class suffix before substitution.
Product Documentation
More from SKF
SKF
SKF A9508F-244 Bearing housing accessory
SKF
SKF GE60ESX-2LS Radial spherical plain bearing
SKF
SKF GA160X175X9X12 Hydraulic rod wiper seal
SKF
SKF 7003FEGA/HCP4AH1 Super-precision angular contact ball bearing
SKF
SKF MB22 Lock washer (MB series)
SKF
SKF GH100X79X8.1-AD1 Hydraulic piston seal
SKF
SKF FSAF617 Split pillow-block housing (SNL / SAF / SAW)
SKF
SKF DZ500-8000-750-E2F Hydraulic rod seal / buffer seal
Technical guides
Catalogue entry last verified: 2026-08-13. A manufacturer datasheet is attached to this entry — confirm application-critical values against it.
Frequently asked questions
- Where can I buy PER.HCN306-25MMAT?
- PER.HCN306-25MMAT can be ordered from cballast.com as a SKF catalogue item: request a quotation on this page or email sales@cballast.com, and the order ships worldwide.
- What is the manufacturer part number for this SKF product?
- The manufacturer part number is PER.HCN306-25MMAT.
- What is the HS code for PER.HCN306-25MMAT?
- The customs tariff (HS) code for PER.HCN306-25MMAT is 8482.10.
- Who manufactures PER.HCN306-25MMAT?
- PER.HCN306-25MMAT is a SKF product in the Bearings & Power Transmission range.
- Is a datasheet available for PER.HCN306-25MMAT?
- Yes — the PER.HCN306-25MMAT datasheet can be viewed and downloaded on this page.
- What is the minimum order quantity for PER.HCN306-25MMAT?
- The minimum order quantity is 1.
- Is PER.HCN306-25MMAT available?
- Yes — PER.HCN306-25MMAT is available to order: fulfilment is from supplier stock in cBallast's European network, dispatched directly from the warehouse to the customer, with the exact lead time stated in the quotation (reply within 24 hours).
