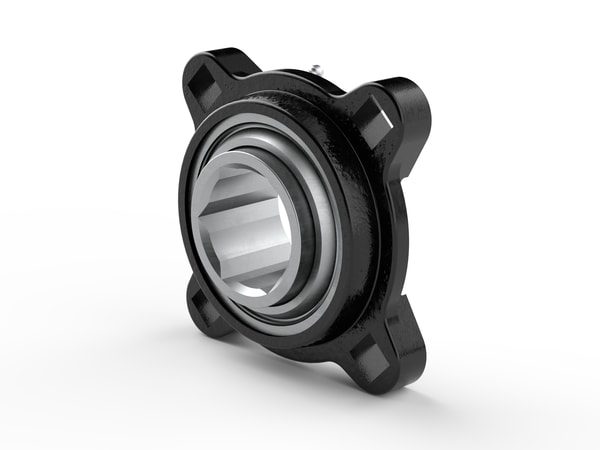

SKF PER.GW210HPPB50-F4X Flanged ball bearing unit (UCF / UCFC / UCFL)
Pricing
Request a quote
We reply within 24 hours
Product Description
SKF PER.GW210HPPB50-F4X flanged ball bearing unit (ucf / ucfc / ucfl). Square four-bolt (UCF), round three-bolt (UCFC) or oval two-bolt (UCFL) flanged housing pre-assembled with a spherical-outer-ring insert bearing. Absorbs shaft-to-housing misalignment on assembly. Set-screw shaft attachment on standard UC-series insert; eccentric-collar (UEL) or adapter-sleeve (UK) variants available. Dimensioned to ISO 3228 / DIN 626.
Technical Specifications
- Type
- Flanged ball bearing unit (UCF / UCFC / UCFL)
- Designation
- SKF PER.GW210HPPB50-F4X
- HS code
- 8483.20
- Width, total
- 42.862 mm
- Basic dynamic load rating
- 35.1 kN
- Basic static load rating
- 23.2 kN
- Housing type
- Flanged
- Number of bolt holes for fasteners
- 4
- Material, housing
- Spheroidal cast iron
- Lubricant
- Grease
- Product net weight
- 1.34 kg
Standards & Compliance
- Standard
- SKF designation convention
- Material
- As declared by SKF designation suffix
- Temperature Range
- Per SKF product data
- HS Code
- 8483.20
Cross References
- NTN 210504
- NSK 210504
- FAG 210504
- Koyo 210504
- ASAHI 210504
- Equivalent: 210504 (NTN)
- Equivalent: 210504 (NSK)
- Equivalent: 210504 (FAG)
- Equivalent: 210504 (Koyo)
- Equivalent: 210504 (ASAHI)
Compatibility & Fitment
Interchange with peer OEM equivalents on identical boundary plan and execution — confirm cage, clearance, sealing and precision-class suffix before substitution.
