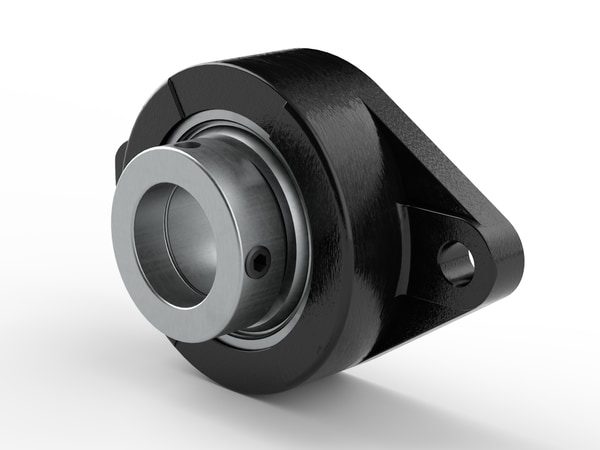

SKF PER.FHLF205-16 Flanged ball bearing unit (UCF / UCFC / UCFL)
Pricing
Request a quote
We reply within 24 hours
Product Description
SKF PER.FHLF205-16 flanged ball bearing unit (ucf / ucfc / ucfl). Square four-bolt (UCF), round three-bolt (UCFC) or oval two-bolt (UCFL) flanged housing pre-assembled with a spherical-outer-ring insert bearing. Absorbs shaft-to-housing misalignment on assembly. Set-screw shaft attachment on standard UC-series insert; eccentric-collar (UEL) or adapter-sleeve (UK) variants available. Dimensioned to ISO 3228 / DIN 626.
Technical Specifications
- Type
- Flanged ball bearing unit (UCF / UCFC / UCFL)
- Designation
- SKF PER.FHLF205-16
- HS code
- 8483.20
- Basic dynamic load rating
- 14 kN
- Basic static load rating
- 7.88 kN
- Housing type
- Flanged
- Number of bolt holes for fasteners
- 2
- Bore type
- Cylindrical
- Material, housing
- Spheroidal cast iron
- Lubricant
- Grease
- Product net weight
- 0.369 kg
- eClass code
- 23-05-16-02
- UNSPSC code
- 31171536
Standards & Compliance
- Standard
- SKF designation convention
- Material
- As declared by SKF designation suffix
- Temperature Range
- Per SKF product data
- HS Code
- 8483.20
Cross References
- NTN 20516
- NSK 20516
- FAG 20516
- Koyo 20516
- ASAHI 20516
- Equivalent: 20516 (NTN)
- Equivalent: 20516 (NSK)
- Equivalent: 20516 (FAG)
- Equivalent: 20516 (Koyo)
- Equivalent: 20516 (ASAHI)
Compatibility & Fitment
Interchange with peer OEM equivalents on identical boundary plan and execution — confirm cage, clearance, sealing and precision-class suffix before substitution.
Product Documentation
More from SKF
SKF
SKF PER.HM89410 Single-row tapered roller bearing
SKF
SKF NU213ECM/C4VA3091 Single-row cylindrical roller bearing (NU / N / NJ / NUP)
SKF
SKF PER.GRNF3C208-24AN-A Flanged ball bearing unit (UCF / UCFC / UCFL)
SKF
SKF PER.JL69310 Single-row tapered roller bearing
SKF
SKF NU213ECM/HC5C3 Single-row cylindrical roller bearing (NU / N / NJ / NUP)
SKF
SKF PER.GRNFT206A-A Flanged ball bearing unit (UCF / UCFC / UCFL)
SKF
SKF PER.JL69349 Single-row tapered roller bearing
SKF
SKF NU213ECML Single-row cylindrical roller bearing (NU / N / NJ / NUP)
Technical guides
Catalogue entry last verified: 2026-08-13. A manufacturer datasheet is attached to this entry — confirm application-critical values against it.
Frequently asked questions
- Where can I buy PER.FHLF205-16?
- PER.FHLF205-16 can be ordered from cballast.com as a SKF catalogue item: request a quotation on this page or email sales@cballast.com, and the order ships worldwide.
- What is the manufacturer part number for this SKF product?
- The manufacturer part number is PER.FHLF205-16.
- What is the HS code for PER.FHLF205-16?
- The customs tariff (HS) code for PER.FHLF205-16 is 8483.20.
- Who manufactures PER.FHLF205-16?
- PER.FHLF205-16 is a SKF product in the Bearings & Power Transmission range.
- Is a datasheet available for PER.FHLF205-16?
- Yes — the PER.FHLF205-16 datasheet can be viewed and downloaded on this page.
- What is the minimum order quantity for PER.FHLF205-16?
- The minimum order quantity is 1.
- Is PER.FHLF205-16 available?
- Yes — PER.FHLF205-16 is available to order: fulfilment is from supplier stock in cBallast's European network, dispatched directly from the warehouse to the customer, with the exact lead time stated in the quotation (reply within 24 hours).
