SKF PER.25590/20 Single-row tapered roller bearing
Pricing
Request a quote
We reply within 24 hours
Product Description
SKF PER.25590/20 single-row tapered roller bearing. Single-row tapered roller bearing designed to take combined heavy radial and one-direction axial load. Cone (inner ring), cup (outer ring) and rollers converge at a common apex on the bearing axis. Two bearings are always mounted in opposition. Metric dimensions per ISO 355; imperial to ANSI/ABMA 19.1.
Technical Specifications
- Type
- Single-row tapered roller bearing
- Designation
- SKF PER.25590/20
- HS code
- 8482.20
- Bore diameter
- 45.618 mm
- Outside diameter
- 82.931 mm
- Width, total
- 25.4 mm
- Width, inner ring
- 25.4 mm
- Width, outer ring
- 19.05 mm
- Contact angle
- 12.6 °
- Basic dynamic load rating
- 74.8 kN
- Basic static load rating
- 95.7 kN
- Reference speed
- 4900 r/min
- Bearing part
- Complete bearing
- Number of rows
- 1
- Locating feature, bearing outer ring
- Without
- Bore type
- Cylindrical
- Cage
- Sheet metal
- Coating
- Without
- Sealing
- Without
- Lubricant
- None
- Relubrication feature
- Without
- Indicative carbon footprint for new product
- 2 kg CO2e
- Product net weight
- 0.54 kg
- eClass code
- 23-05-09-10
- UNSPSC code
- 31171516
Standards & Compliance
- Standard
- SKF designation convention
- Material
- As declared by SKF designation suffix
- Temperature Range
- Per SKF product data
- HS Code
- 8482.20
Cross References
- Timken 2559020
- NSK 2559020
- NTN 2559020
- FAG 2559020
- Koyo 2559020
- Equivalent: 2559020 (Timken)
- Equivalent: 2559020 (NSK)
- Equivalent: 2559020 (NTN)
- Equivalent: 2559020 (FAG)
- Equivalent: 2559020 (Koyo)
Compatibility & Fitment
Interchange with peer OEM equivalents on identical boundary plan and execution — confirm cage, clearance, sealing and precision-class suffix before substitution.
Product Documentation
More from SKF
SKF
SKF NU20/530ECMA Single-row cylindrical roller bearing (NU / N / NJ / NUP)
SKF
SKF FYTB506M Flanged ball bearing unit (UCF / UCFC / UCFL)
SKF
SKF PER.25590/23 Single-row tapered roller bearing
SKF
SKF NU20/560ECMA Single-row cylindrical roller bearing (NU / N / NJ / NUP)
SKF
SKF FYTB507M Flanged ball bearing unit (UCF / UCFC / UCFL)
SKF
SKF PER.25821 Single-row tapered roller bearing
SKF
SKF NU20/630ECMA Single-row cylindrical roller bearing (NU / N / NJ / NUP)
SKF

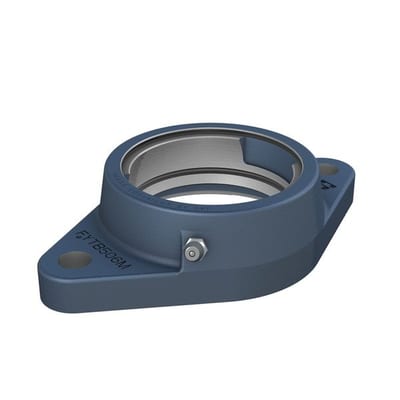

SKF FYTB508M Flanged ball bearing unit (UCF / UCFC / UCFL)
