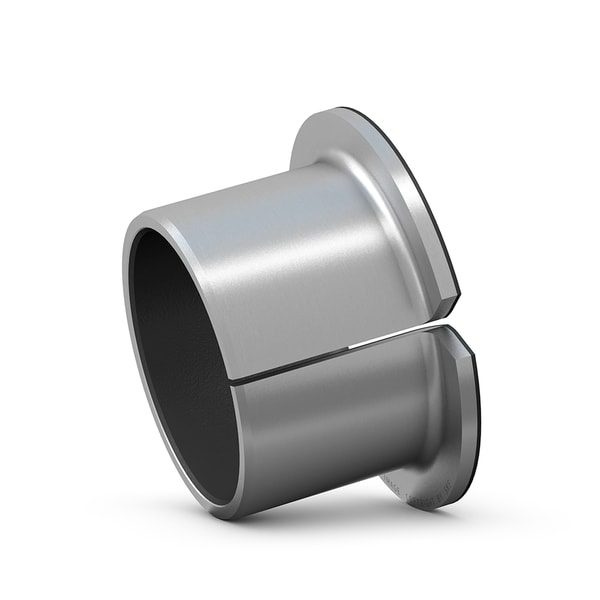

SKF PCMF252811.5E Plain sleeve bushing
Pricing
Request a quote
We reply within 24 hours
Product Description
SKF PCMF252811.5E plain sleeve bushing. Maintenance-free plain sleeve bushing — steel-backed sintered-bronze / PTFE composite (PCM series), steel-backed acetal composite (PCMF / PSM), or solid bronze (PBM / PBMF). Handles low-to-moderate sliding speed with grease, oil, water or dry running per material selection. Dimensioned to ISO 3547 metric wrapped bushings.
Technical Specifications
- Type
- Plain sleeve bushing
- Designation
- SKF PCMF252811.5E
- HS code
- 8483.30
- Bore diameter
- 25 mm
- Outside diameter
- 28 mm
- Width
- 11.5 mm
- Flange diameter
- 35 mm
- Flange thickness
- 1.5 mm
- Basic dynamic load rating, radial direction
- 17.3 kN
- Basic static load rating, radial direction
- 54 kN
- Basic dynamic load rating, axial direction
- 20.4 kN
- Basic static load rating, axial direction
- 64 kN
- Design
- Flanged
- Material
- PTFE composite
- Relubrication feature
- Without
- Product net weight
- 0.0137 kg
- eClass code
- 23-05-01-90
- UNSPSC code
- 31171605
Standards & Compliance
- Standard
- SKF designation convention (see description for governing ISO / DIN)
- Material
- As declared by SKF designation suffix
- Temperature Range
- Per SKF product data
- HS Code
- 8483.30
Cross References
- GGB 2528115
- IGUS 2528115
- OilesⓇ 2528115
- Bunting 2528115
- Equivalent: 2528115 (GGB)
- Equivalent: 2528115 (IGUS)
- Equivalent: 2528115 (OilesⓇ)
- Equivalent: 2528115 (Bunting)
Compatibility & Fitment
Interchange with peer OEM equivalents on identical boundary plan and execution — confirm cage, clearance, sealing and precision-class suffix before substitution.
