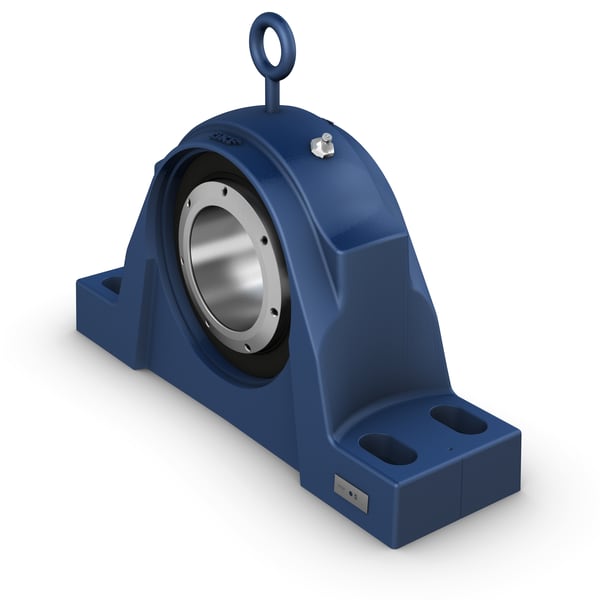

SKF P4BA407-SRB-CGE Roller-bearing pillow-block unit
Pricing
Request a quote
We reply within 24 hours
Product Description
SKF P4BA407-SRB-CGE roller-bearing pillow-block unit. Cast-iron pillow-block housing pre-assembled with a spherical roller bearing on adapter sleeve. Two-bolt (SYNT / FYNT / SBP) or four-bolt (SFT / FSNL) execution. Suitable for heavier shaft loads than ball-bearing pillow-block units on marine deck cranes, conveyors and process machinery.
Technical Specifications
- Type
- Roller-bearing pillow-block unit
- Designation
- SKF P4BA407-SRB-CGE
- HS code
- 8483.20
- Shaft diameter
- 112.713 mm
- Centre height (pillow block)
- 152.4 mm
- Housing overall width
- 133.35 mm
- Centre distance between bolt holes
- 388.938 mm
- Attachment bolt diameter
- 22.225 mm
- Bearing width, total
- 98.552 mm
- Basic dynamic load rating
- 572 kN
- Basic static load rating
- 640 kN
- Limiting speed
- 800 r/min
- Housing type
- Pillow block
- Number of bolt holes for fasteners
- 4
- Bearing insert
- Spherical roller bearing
- Retaining feature, inner ring
- SKF ConCentra
- Bearing position
- Non-locating
- Bore type
- Cylindrical
- Material, housing
- Cast iron
- Material, bearing
- Bearing steel
- Coating
- Without
- Bearing housing seal type
- Heavy-duty seal
- Sealing, unit
- Optional end cover
- Lubricant
- Grease
- Relubrication hole
- With
- Grease fitting
- With
- Product net weight
- 40.5 kg
- eClass code
- 23-05-16-90
- UNSPSC code
- 31171537
Standards & Compliance
- Standard
- SKF designation convention (see description for governing ISO / DIN)
- Material
- As declared by SKF designation suffix
- Temperature Range
- Per SKF product data
- HS Code
- 8483.20
Cross References
- Cooper Split 4407
- Dodge 4407
- Rexnord 4407
- Equivalent: 4407 (Cooper Split)
- Equivalent: 4407 (Dodge)
- Equivalent: 4407 (Rexnord)
Compatibility & Fitment
Interchange with peer OEM equivalents on identical boundary plan and execution — confirm cage, clearance, sealing and precision-class suffix before substitution.
