SKF NUTR35A Track roller — support roller
Pricing
Request a quote
We reply within 24 hours
Product Description
SKF NUTR35A track roller — support roller. Heavy-section outer-ring roller bearing designed to run directly on a linear track or profile rail, carrying radial load between a stationary axle and the moving track. Yoke-type (LR / RSTO / STO) or stud-type (LFR / KRV / KR / KRE). Widely used on trolley conveyors, sliding-gate rollers, deck-crane trolleys.
Technical Specifications
- Type
- Track roller — support roller
- Designation
- SKF NUTR35A
- HS code
- 8482.20
- Functional outside diameter
- 72 mm
- Bore diameter
- 35 mm
- Width, total
- 29 mm
- Width, outer ring
- 28 mm
- Basic dynamic load rating
- 45.7 kN
- Basic static load rating
- 57 kN
- Limiting speed
- 2000 r/min
- Bearing part
- Complete track roller
- Rolling elements
- Cylindrical rollers
- Number of rows
- 2
- Outer ring profile
- Crowned
- Axial guidance of outer ring
- Yes
- Number of flanges, outer ring
- 2
- Cage
- Without
- Radial internal clearance
- Between C2 and CN
- Tolerance class
- Other
- Material, bearing
- Bearing steel
- Coating
- Without
- Sealing
- Seal on both sides
- Sealing type
- Labyrinth
- Lubricant
- Grease
- Relubrication feature
- With
- Product net weight
- 0.63 kg
- eClass code
- 23-05-09-03
- UNSPSC code
- 31171512
Standards & Compliance
- Standard
- SKF designation convention
- Material
- As declared by SKF designation suffix
- Temperature Range
- Per SKF product data
- HS Code
- 8482.20
Compatibility & Fitment
Interchange with peer OEM equivalents on identical boundary plan and execution — confirm cage, clearance, sealing and precision-class suffix before substitution.
Product Documentation
More from SKF
SKF
SKF P2B30M-TF Pillow block ball bearing unit (UCP / UEP / UKP)
SKF
SKF PHFFX30-60X68 Keyless shaft bushing / locking assembly
SKF
SKF SALKB8F Rod end (spherical plain bearing with threaded eye)
SKF
SKF SNL3268 SNL 30/31/32 split pillow-block housing
SKF
SKF HMV43/233983 Hydraulic bearing mounting / dismounting tool
SKF
SKF 226X250X41DOCR60 Metal face seal (Duo-Cone / mud seal)
SKF
SKF 1314 Self-aligning ball bearing (12XX / 13XX / 22XX)
SKF

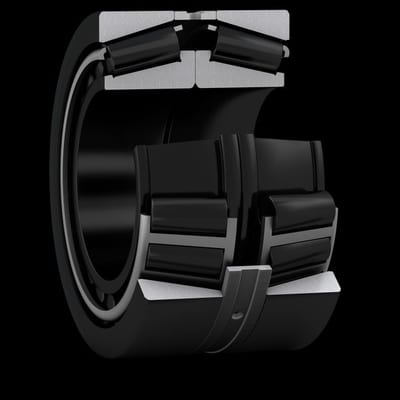

SKF 32044X/L4BDFC480 Matched pair / set of tapered roller bearings
Technical guides
Catalogue entry last verified: 2026-08-13. A manufacturer datasheet is attached to this entry — confirm application-critical values against it.
Frequently asked questions
- Where can I buy NUTR35A?
- NUTR35A can be ordered from cballast.com as a SKF catalogue item: request a quotation on this page or email sales@cballast.com, and the order ships worldwide.
- What is the manufacturer part number for this SKF product?
- The manufacturer part number is NUTR35A.
- What is the HS code for NUTR35A?
- The customs tariff (HS) code for NUTR35A is 8482.20.
- Who manufactures NUTR35A?
- NUTR35A is a SKF product in the Bearings & Power Transmission range.
- Is a datasheet available for NUTR35A?
- Yes — the NUTR35A datasheet can be viewed and downloaded on this page.
- What is the minimum order quantity for NUTR35A?
- The minimum order quantity is 1.
- Is NUTR35A available?
- Yes — NUTR35A is available to order: fulfilment is from supplier stock in cBallast's European network, dispatched directly from the warehouse to the customer, with the exact lead time stated in the quotation (reply within 24 hours).
