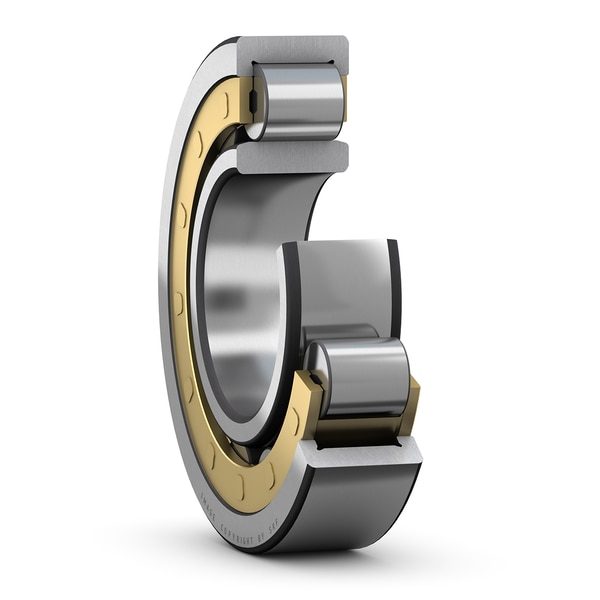

SKF NU334ECM/C3 Single-row cylindrical roller bearing (NU / N / NJ / NUP)

SKF NU334ECM/C3 single-row cylindrical roller bearing (nu / n / nj / nup). Single-row cylindrical roller bearing. Design executions NU / N / NJ / NUP set the axial-guidance capability by rib configuration on inner and outer ring. Standard cage ECP (glass-fibre-reinforced polyamide 6.6) for bores up to 100 mm; ECM (machined brass) above. Precision to ISO 492 Class Normal / P6 / P5. Very heavy radial-load capacity at moderate speed. Suitable for reduction-gear input shafts, marine deck-machinery drives, paper-mill dryer sections.

Type

Single-row cylindrical roller bearing (NU / N / NJ / NUP)

Designation

SKF NU334ECM/C3

Bore d

170 mm

HS code

8482.20

Bore diameter

170 mm

Outside diameter

360 mm

Width

72 mm

Basic dynamic load rating

952 kN

Basic static load rating

1180 kN

Reference speed

1700 r/min

Limiting speed

2200 r/min

Bearing part

Complete bearing

Axial displacement capability

In both directions

Number of rows

1

Locating feature, bearing outer ring

Without

Bore type

Cylindrical

Cage

Machined brass

Number of flanges, outer ring

2

Number of flanges, inner ring

0

Loose flange

None

Radial internal clearance

CN

Tolerance class

Normal

Coating

Without

Sealing

Without

Lubricant

None

Relubrication feature

Without

Candidate for remanufacturing

Yes

Indicative carbon footprint for new product

123 kg CO2e

Indicative carbon footprint for remanufactured product

40.8 kg CO2e

Product net weight

33.2 kg

eClass code

23-05-09-01

UNSPSC code

31171505

Dimensions (d × D × B)

170 × 360 × 72 mm

Standard

SKF designation convention

Material

As declared by SKF designation suffix

Temperature Range

Per SKF product data

HS Code

8482.20

• FAG 3343
• NSK 3343
• NTN 3343
• Timken 3343
• Koyo 3343
• Alt. designation NU 334 ECM/C3
• Equivalent: 3343 (FAG)
• Equivalent: 3343 (NSK)
• Equivalent: 3343 (NTN)
• Equivalent: 3343 (Timken)
• Equivalent: 3343 (Koyo)
