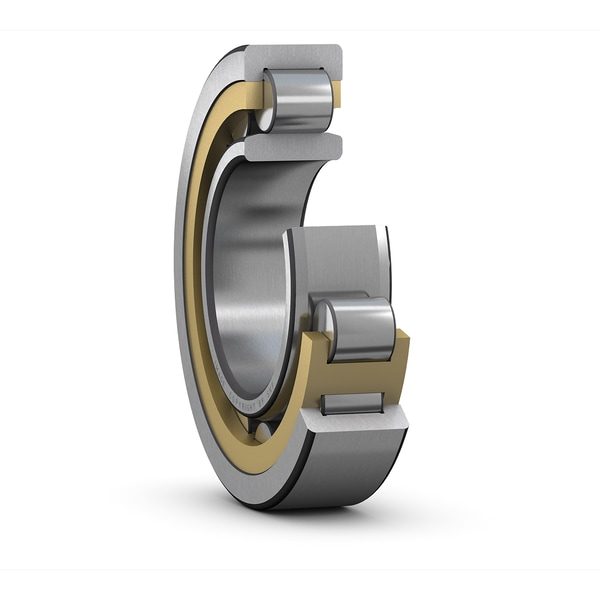

SKF NU2308ECML Single-row cylindrical roller bearing (NU / N / NJ / NUP)

SKF NU2308ECML single-row cylindrical roller bearing (nu / n / nj / nup). Single-row cylindrical roller bearing. Design executions NU / N / NJ / NUP set the axial-guidance capability by rib configuration on inner and outer ring. Standard cage ECP (glass-fibre-reinforced polyamide 6.6) for bores up to 100 mm; ECM (machined brass) above. Precision to ISO 492 Class Normal / P6 / P5. Very heavy radial-load capacity at moderate speed. Suitable for reduction-gear input shafts, marine deck-machinery drives, paper-mill dryer sections.

Type

Single-row cylindrical roller bearing (NU / N / NJ / NUP)

Designation

SKF NU2308ECML

Bore d

40 mm

HS code

8482.20

Bore diameter

40 mm

Outside diameter

90 mm

Width

33 mm

Basic dynamic load rating

129 kN

Basic static load rating

120 kN

Reference speed

8000 r/min

Limiting speed

15000 r/min

SKF performance class

SKF Explorer

Bearing part

Complete bearing

Axial displacement capability

In both directions

Number of rows

1

Locating feature, bearing outer ring

Without

Bore type

Cylindrical

Cage

Machined brass

Number of flanges, outer ring

2

Number of flanges, inner ring

0

Loose flange

None

Radial internal clearance

CN

Tolerance class

Normal

Coating

Without

Sealing

Without

Lubricant

None

Relubrication feature

Without

Indicative carbon footprint for new product

4 kg CO2e

Product net weight

1.07 kg

eClass code

23-05-09-01

UNSPSC code

31171505

Dimensions (d × D × B)

40 × 90 × 33 mm

Standard

SKF designation convention

Material

As declared by SKF designation suffix

Temperature Range

Per SKF product data

HS Code

8482.20

• FAG 2308
• NSK 2308
• NTN 2308
• Timken 2308
• Koyo 2308
• Alt. designation NU 2308 ECML
• Equivalent: 2308 (FAG)
• Equivalent: 2308 (NSK)
• Equivalent: 2308 (NTN)
• Equivalent: 2308 (Timken)
• Equivalent: 2308 (Koyo)
