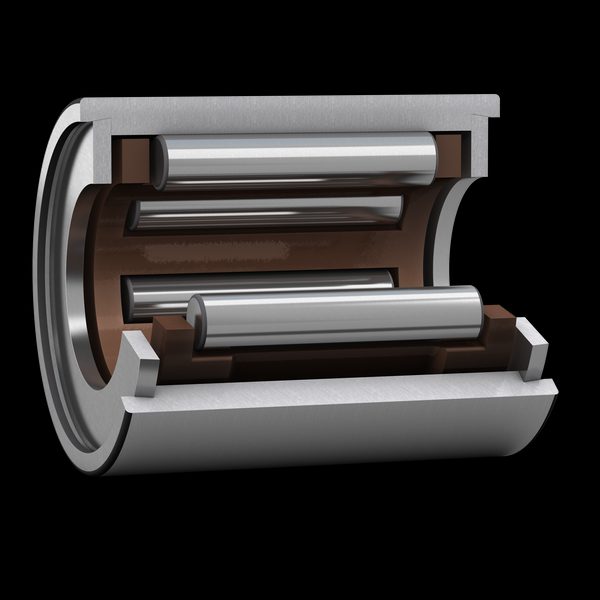

SKF NK7/10TN Needle roller bearing (machined rings)
Pricing
Request a quote
We reply within 24 hours
Product Description
SKF NK7/10TN needle roller bearing (machined rings). Needle roller bearing with machined inner and outer rings (NA48xx, NA49xx, NA69xx, RNA48xx, RNA49xx, RNA69xx per ISO 3245 / DIN 617). Ideal for high radial load in the smallest possible radial section — universal-joint yokes, camshaft supports, transmission planetary pinions.
Technical Specifications
- Type
- Needle roller bearing (machined rings)
- Designation
- SKF NK7/10TN
- HS code
- 8482.40
- Bore diameter of needle roller complement
- 7 mm
- Outside diameter
- 14 mm
- Width
- 10 mm
- Basic dynamic load rating
- 2.81 kN
- Basic static load rating
- 2.75 kN
- Reference speed
- 32000 r/min
- Limiting speed
- 36000 r/min
- Bearing part
- Bearing without inner ring
- Number of rows
- 1
- Outer ring type
- Machined (solid)
- Aligning feature
- Without
- Cage
- Non-metallic
- Number of flanges, outer ring
- 2
- Tolerance class
- Normal
- Material, bearing
- Bearing steel
- Coating
- Without
- Sealing
- Without
- Lubricant
- None
- Relubrication feature
- Without
- Indicative carbon footprint for new product
- 0.03 kg CO2e
- Product net weight
- 0.007 kg
- eClass code
- 23-05-09-03
- UNSPSC code
- 31171512
Standards & Compliance
- Standard
- SKF designation convention (see description for governing ISO / DIN)
- Material
- As declared by SKF designation suffix
- Temperature Range
- Per SKF product data
- HS Code
- 8482.40
Cross References
- INA 710
- Torrington / Timken 710
- IKO 710
- NTN 710
- Equivalent: 710 (INA)
- Equivalent: 710 (Torrington / Timken)
- Equivalent: 710 (IKO)
- Equivalent: 710 (NTN)
Compatibility & Fitment
Interchange with peer OEM equivalents on identical boundary plan and execution — confirm cage, clearance, sealing and precision-class suffix before substitution.
