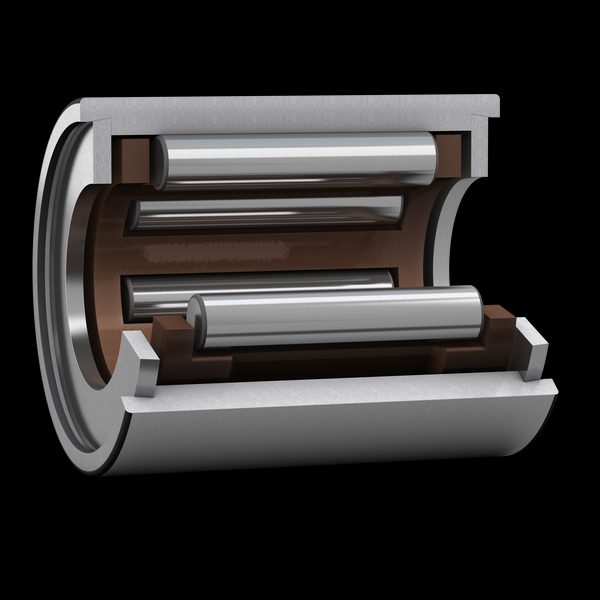

SKF NK6/10TN Needle roller bearing (machined rings)
Pricing
Request a quote
We reply within 24 hours
Product Description
SKF NK6/10TN needle roller bearing (machined rings). Needle roller bearing with machined inner and outer rings (NA48xx, NA49xx, NA69xx, RNA48xx, RNA49xx, RNA69xx per ISO 3245 / DIN 617). Ideal for high radial load in the smallest possible radial section — universal-joint yokes, camshaft supports, transmission planetary pinions.
Technical Specifications
- Type
- Needle roller bearing (machined rings)
- Designation
- SKF NK6/10TN
- HS code
- 8482.40
- Bore diameter of needle roller complement
- 6 mm
- Outside diameter
- 12 mm
- Width
- 10 mm
- Basic dynamic load rating
- 2.55 kN
- Basic static load rating
- 2.36 kN
- Reference speed
- 34000 r/min
- Limiting speed
- 38000 r/min
- Bearing part
- Bearing without inner ring
- Number of rows
- 1
- Outer ring type
- Machined (solid)
- Aligning feature
- Without
- Cage
- Non-metallic
- Number of flanges, outer ring
- 2
- Tolerance class
- Normal
- Material, bearing
- Bearing steel
- Coating
- Without
- Sealing
- Without
- Lubricant
- None
- Relubrication feature
- Without
- Indicative carbon footprint for new product
- 0.02 kg CO2e
- Product net weight
- 0.005 kg
- eClass code
- 23-05-09-03
- UNSPSC code
- 31171512
Standards & Compliance
- Standard
- SKF designation convention (see description for governing ISO / DIN)
- Material
- As declared by SKF designation suffix
- Temperature Range
- Per SKF product data
- HS Code
- 8482.40
Cross References
- INA 610
- Torrington / Timken 610
- IKO 610
- NTN 610
- Equivalent: 610 (INA)
- Equivalent: 610 (Torrington / Timken)
- Equivalent: 610 (IKO)
- Equivalent: 610 (NTN)
Compatibility & Fitment
Interchange with peer OEM equivalents on identical boundary plan and execution — confirm cage, clearance, sealing and precision-class suffix before substitution.
Product Documentation
More from SKF
SKF
SKF PCM222525M Plain sleeve bushing
SKF
SKF OR13.0X1.4-N70 O-ring / back-up ring
SKF
SKF P2BA307-SRB-CGE Roller-bearing pillow-block unit
SKF
SKF PGR30X25X5.6-PF Hydraulic guide ring / wear ring / bearing strip
SKF
SKF PHC100-1O/L-XP Roller chain
SKF
SKF PHFJA-25MM QD (Quick Disconnect) bushing
SKF
SKF PHFTB2012X40MM Taper bushing
SKF
SKF PHG1120-14M-85 Timing belt (synchronous drive belt)
Technical guides
Catalogue entry last verified: 2026-08-13. A manufacturer datasheet is attached to this entry — confirm application-critical values against it.
Frequently asked questions
- Where can I buy NK6/10TN?
- NK6/10TN can be ordered from cballast.com as a SKF catalogue item: request a quotation on this page or email sales@cballast.com, and the order ships worldwide.
- What is the manufacturer part number for this SKF product?
- The manufacturer part number is NK6/10TN.
- What is the HS code for NK6/10TN?
- The customs tariff (HS) code for NK6/10TN is 8482.40.
- Who manufactures NK6/10TN?
- NK6/10TN is a SKF product in the Bearings & Power Transmission range.
- Is a datasheet available for NK6/10TN?
- Yes — the NK6/10TN datasheet can be viewed and downloaded on this page.
- What is the minimum order quantity for NK6/10TN?
- The minimum order quantity is 1.
- Is NK6/10TN available?
- Yes — NK6/10TN is available to order: fulfilment is from supplier stock in cBallast's European network, dispatched directly from the warehouse to the customer, with the exact lead time stated in the quotation (reply within 24 hours).
