Product Description

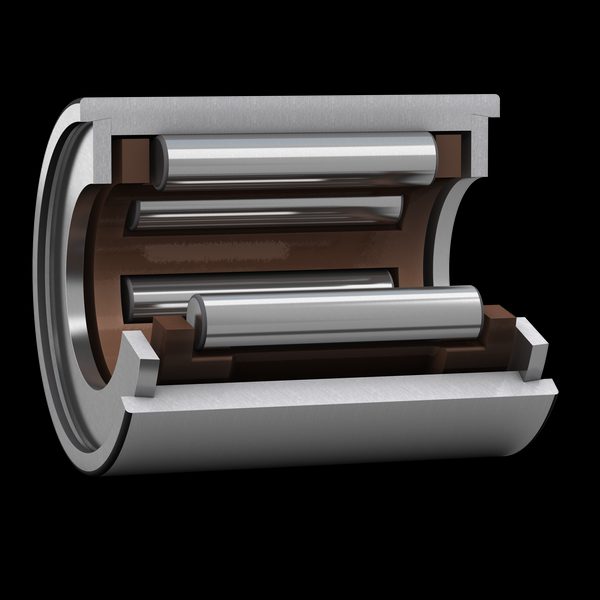

SKF NK5/10TN machined ring needle roller bearing without inner ring. For precision rotating assemblies with hardened shafts.
Technical Specifications
- Material
- Chrome Steel (GCr15/AISI 52100)
- Standard
- ISO 1206
- Standard size
- NK5/10
- Approval
- ISO 9001, ISO/TS 16949, ISO 492, DIN 620
- Standards
- ISO 9001, ISO 492, DIN 620, ISO 15
- Approvals
- RoHS
- HS code
- 8482.40
- Bore diameter of needle roller complement
- 5 mm
- Outside diameter
- 10 mm
- Width
- 10 mm
- Basic dynamic load rating
- 2.29 kN
- Basic static load rating
- 2 kN
- Reference speed
- 36000 r/min
- Limiting speed
- 40000 r/min
- Bearing part
- Bearing without inner ring
- Number of rows
- 1
- Outer ring type
- Machined (solid)
- Aligning feature
- Without
- Cage
- Non-metallic
- Number of flanges, outer ring
- 2
- Tolerance class
- Normal
- Material, bearing
- Bearing steel
- Coating
- Without
- Sealing
- Without
- Relubrication feature
- Without
- Indicative carbon footprint for new product
- 0.01 kg CO2e
- Product net weight
- 0.003 kg
- eClass code
- 23-05-09-03
- UNSPSC code
- 31171512
- Lubricant
- None
Standards & Compliance
- Standard
- ISO 1206
- Size / Series
- NK5/10
- Material
- Chrome Steel (GCr15/AISI 52100)
- Classification / Approval
- ISO 9001, ISO/TS 16949, ISO 492, DIN 620
- HS Code
- 8482.40
Cross References
- SKF NK5/10TN
- INA NK5/10-TV
- NTN NK5/10T2
Compatibility & Fitment
Standard ISO 15 bearing dimensions. Compatible with SKF, NSK, FAG, NTN, Koyo, Timken of same designation.
