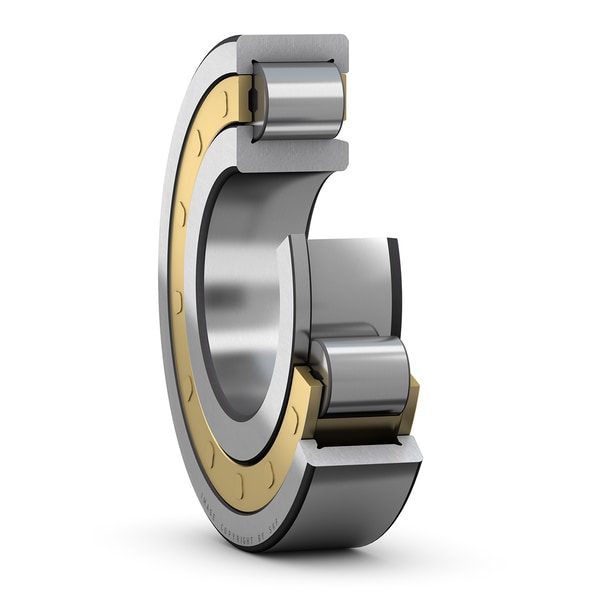

SKF NJ314ECM/C3 Single-row cylindrical roller bearing (NU / N / NJ / NUP)
Pricing
Request a quote
We reply within 24 hours
Product Description
SKF NJ314ECM/C3 single-row cylindrical roller bearing (nu / n / nj / nup). Single-row cylindrical roller bearing. Design executions NU / N / NJ / NUP set the axial-guidance capability by rib configuration on inner and outer ring. Standard cage ECP (glass-fibre-reinforced polyamide 6.6) for bores up to 100 mm; ECM (machined brass) above. Precision to ISO 492 Class Normal / P6 / P5. Very heavy radial-load capacity at moderate speed. Suitable for reduction-gear input shafts, marine deck-machinery drives, paper-mill dryer sections.
Technical Specifications
- Type
- Single-row cylindrical roller bearing (NU / N / NJ / NUP)
- Designation
- SKF NJ314ECM/C3
- Bore d
- 70 mm
- HS code
- 8482.20
- Bore diameter
- 70 mm
- Outside diameter
- 150 mm
- Width
- 35 mm
- Basic dynamic load rating
- 236 kN
- Basic static load rating
- 228 kN
- Reference speed
- 4800 r/min
- Limiting speed
- 5600 r/min
- SKF performance class
- SKF Explorer
- Bearing part
- Complete bearing
- Axial displacement capability
- In one direction
- Number of rows
- 1
- Locating feature, bearing outer ring
- Without
- Bore type
- Cylindrical
- Cage
- Machined brass
- Number of flanges, outer ring
- 2
- Number of flanges, inner ring
- 1
- Loose flange
- None
- Radial internal clearance
- CN
- Tolerance class
- Normal
- Coating
- Without
- Sealing
- Without
- Lubricant
- None
- Relubrication feature
- Without
- Indicative carbon footprint for new product
- 11.9 kg CO2e
- Product net weight
- 3.23 kg
- eClass code
- 23-05-09-01
- UNSPSC code
- 31171505
Standards & Compliance
- Standard
- SKF designation convention
- Material
- As declared by SKF designation suffix
- Temperature Range
- Per SKF product data
- HS Code
- 8482.20
Cross References
- FAG 3143
- NSK 3143
- NTN 3143
- Timken 3143
- Koyo 3143
- Equivalent: 3143 (FAG)
- Equivalent: 3143 (NSK)
- Equivalent: 3143 (NTN)
- Equivalent: 3143 (Timken)
- Equivalent: 3143 (Koyo)
Compatibility & Fitment
Interchange with peer OEM equivalents on identical boundary plan and execution — confirm cage, clearance, sealing and precision-class suffix before substitution.
