SKF NJ211ECPH Single-row cylindrical roller bearing (NU / N / NJ / NUP)
Pricing
Request a quote
We reply within 24 hours
Product Description
SKF NJ211ECPH single-row cylindrical roller bearing (nu / n / nj / nup). Single-row cylindrical roller bearing. Design executions NU / N / NJ / NUP set the axial-guidance capability by rib configuration on inner and outer ring. Standard cage ECP (glass-fibre-reinforced polyamide 6.6) for bores up to 100 mm; ECM (machined brass) above. Precision to ISO 492 Class Normal / P6 / P5. Very heavy radial-load capacity at moderate speed. Suitable for reduction-gear input shafts, marine deck-machinery drives, paper-mill dryer sections.
Technical Specifications
- Type
- Single-row cylindrical roller bearing (NU / N / NJ / NUP)
- Designation
- SKF NJ211ECPH
- Bore d
- 55 mm
- HS code
- 8482.20
- Bore diameter
- 55 mm
- Outside diameter
- 100 mm
- Width
- 21 mm
- Basic dynamic load rating
- 96.5 kN
- Basic static load rating
- 95 kN
- Reference speed
- 7500 r/min
- Limiting speed
- 8000 r/min
- SKF performance class
- SKF Explorer
- Bearing part
- Complete bearing
- Axial displacement capability
- In one direction
- Number of rows
- 1
- Locating feature, bearing outer ring
- Without
- Bore type
- Cylindrical
- Cage
- Non-metallic
- Number of flanges, outer ring
- 2
- Number of flanges, inner ring
- 1
- Loose flange
- None
- Radial internal clearance
- CN
- Tolerance class
- Normal
- Coating
- Without
- Sealing
- Without
- Lubricant
- None
- Relubrication feature
- Without
- Indicative carbon footprint for new product
- 2.5 kg CO2e
- Product net weight
- 0.667 kg
- eClass code
- 23-05-09-01
- UNSPSC code
- 31171505
Standards & Compliance
- Standard
- SKF designation convention
- Material
- As declared by SKF designation suffix
- Temperature Range
- Per SKF product data
- HS Code
- 8482.20
Cross References
- FAG 211
- NSK 211
- NTN 211
- Timken 211
- Koyo 211
- Equivalent: 211 (FAG)
- Equivalent: 211 (NSK)
- Equivalent: 211 (NTN)
- Equivalent: 211 (Timken)
- Equivalent: 211 (Koyo)
Compatibility & Fitment
Interchange with peer OEM equivalents on identical boundary plan and execution — confirm cage, clearance, sealing and precision-class suffix before substitution.
Product Documentation
More from SKF
SKF
SKF 99836 SKF Speedi-Sleeve shaft wear sleeve
SKF
SKF C4128-2CS5V/C3GEM9 CARB toroidal roller bearing (C xxxx)
SKF
SKF COP.SR308 Cooper split roller bearing
SKF
SKF F3BBC30M-TPZM Flanged ball bearing unit (UCF / UCFC / UCFL)
SKF

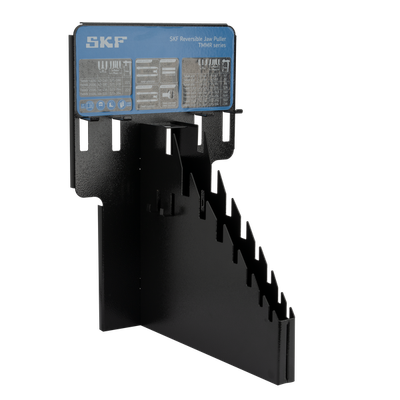

SKF TMMR8F-1 Bearing mounting / dismounting tool
