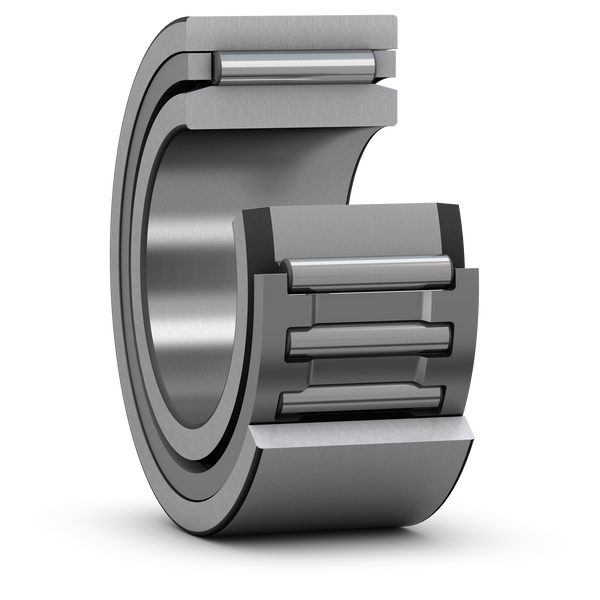

SKF NAO17X30X13 Needle roller bearing (machined rings)
Pricing
Request a quote
We reply within 24 hours
Product Description
SKF NAO17X30X13 needle roller bearing (machined rings). Needle roller bearing with machined inner and outer rings (NA48xx, NA49xx, NA69xx, RNA48xx, RNA49xx, RNA69xx per ISO 3245 / DIN 617). Ideal for high radial load in the smallest possible radial section — universal-joint yokes, camshaft supports, transmission planetary pinions.
Technical Specifications
- Type
- Needle roller bearing (machined rings)
- Designation
- SKF NAO17X30X13
- HS code
- 8482.40
- Bore diameter
- 17 mm
- Outside diameter
- 30 mm
- Width
- 13 mm
- Basic dynamic load rating
- 10.1 kN
- Basic static load rating
- 16.3 kN
- Reference speed
- 18000 r/min
- Limiting speed
- 20000 r/min
- Bearing part
- Complete bearing
- Number of rows
- 1
- Outer ring type
- Machined (solid)
- Aligning feature
- Without
- Cage
- Sheet metal
- Number of flanges, outer ring
- 0
- Radial internal clearance
- CN
- Tolerance class
- Normal
- Material, bearing
- Bearing steel
- Coating
- Without
- Sealing
- Without
- Lubricant
- None
- Relubrication feature
- Without
- Indicative carbon footprint for new product
- 0.16 kg CO2e
- Product net weight
- 0.042 kg
- eClass code
- 23-05-09-03
- UNSPSC code
- 31171512
Standards & Compliance
- Standard
- SKF designation convention (see description for governing ISO / DIN)
- Material
- As declared by SKF designation suffix
- Temperature Range
- Per SKF product data
- HS Code
- 8482.40
Cross References
- INA 173013
- Torrington / Timken 173013
- IKO 173013
- NTN 173013
- Equivalent: 173013 (INA)
- Equivalent: 173013 (Torrington / Timken)
- Equivalent: 173013 (IKO)
- Equivalent: 173013 (NTN)
Compatibility & Fitment
Interchange with peer OEM equivalents on identical boundary plan and execution — confirm cage, clearance, sealing and precision-class suffix before substitution.
Product Documentation
More from SKF
SKF
SKF PCM125130100E Plain sleeve bushing
SKF
SKF OR114.5X3.0-N70 O-ring / back-up ring
SKF
SKF P2B211-SRB-SRH Roller-bearing pillow-block unit
SKF
SKF PGR180X172X25-PF Hydraulic guide ring / wear ring / bearing strip
SKF
SKF PHC06B-2SSX10FT Roller chain
SKF
SKF PHFF-3-5/8 QD (Quick Disconnect) bushing
SKF
SKF PHFTB1610X1.25 Taper bushing
SKF
SKF PHG106-XL-025 Timing belt (synchronous drive belt)
Technical guides
Catalogue entry last verified: 2026-08-13. A manufacturer datasheet is attached to this entry — confirm application-critical values against it.
Frequently asked questions
- Where can I buy NAO17X30X13?
- NAO17X30X13 can be ordered from cballast.com as a SKF catalogue item: request a quotation on this page or email sales@cballast.com, and the order ships worldwide.
- What is the manufacturer part number for this SKF product?
- The manufacturer part number is NAO17X30X13.
- What is the HS code for NAO17X30X13?
- The customs tariff (HS) code for NAO17X30X13 is 8482.40.
- Who manufactures NAO17X30X13?
- NAO17X30X13 is a SKF product in the Bearings & Power Transmission range.
- Is a datasheet available for NAO17X30X13?
- Yes — the NAO17X30X13 datasheet can be viewed and downloaded on this page.
- What is the minimum order quantity for NAO17X30X13?
- The minimum order quantity is 1.
- Is NAO17X30X13 available?
- Yes — NAO17X30X13 is available to order: fulfilment is from supplier stock in cBallast's European network, dispatched directly from the warehouse to the customer, with the exact lead time stated in the quotation (reply within 24 hours).
