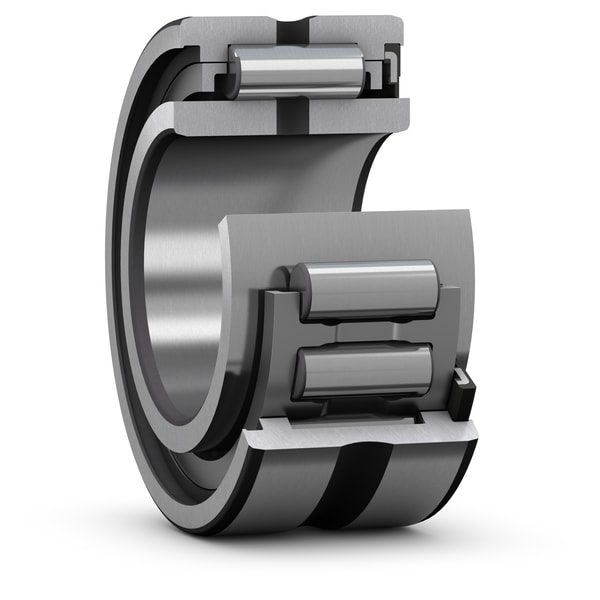

SKF NA4901RS Needle roller bearing (machined rings)
Pricing
Request a quote
We reply within 24 hours
Product Description
SKF NA4901RS needle roller bearing (machined rings). Needle roller bearing with machined inner and outer rings (NA48xx, NA49xx, NA69xx, RNA48xx, RNA49xx, RNA69xx per ISO 3245 / DIN 617). Ideal for high radial load in the smallest possible radial section — universal-joint yokes, camshaft supports, transmission planetary pinions.
Technical Specifications
- Type
- Needle roller bearing (machined rings)
- Designation
- SKF NA4901RS
- Bore d
- 12 mm
- HS code
- 8482.40
- Bore diameter
- 12 mm
- Outside diameter
- 24 mm
- Width
- 14 mm
- Basic dynamic load rating
- 8.09 kN
- Basic static load rating
- 9.65 kN
- Limiting speed
- 11000 r/min
- Bearing part
- Complete bearing
- Number of rows
- 1
- Outer ring type
- Machined (solid)
- Aligning feature
- Without
- Cage
- Sheet metal
- Number of flanges, outer ring
- 2
- Radial internal clearance
- CN
- Tolerance class
- Normal
- Material, bearing
- Bearing steel
- Coating
- Without
- Sealing
- Seal on one side
- Sealing type
- Contact
- Lubricant
- Grease
- Relubrication feature
- With
- Indicative carbon footprint for new product
- 0.1 kg CO2e
- Product net weight
- 0.028 kg
- eClass code
- 23-05-09-03
- UNSPSC code
- 31171512
Standards & Compliance
- Standard
- SKF designation convention (see description for governing ISO / DIN)
- Material
- As declared by SKF designation suffix
- Temperature Range
- Per SKF product data
- HS Code
- 8482.40
Cross References
- INA 4901
- Torrington / Timken 4901
- IKO 4901
- NTN 4901
- Equivalent: 4901 (INA)
- Equivalent: 4901 (Torrington / Timken)
- Equivalent: 4901 (IKO)
- Equivalent: 4901 (NTN)
Compatibility & Fitment
Interchange with peer OEM equivalents on identical boundary plan and execution — confirm cage, clearance, sealing and precision-class suffix before substitution.
