SKF NA4900RS Needle roller bearing (machined rings)
Pricing
Request a quote
We reply within 24 hours
Product Description

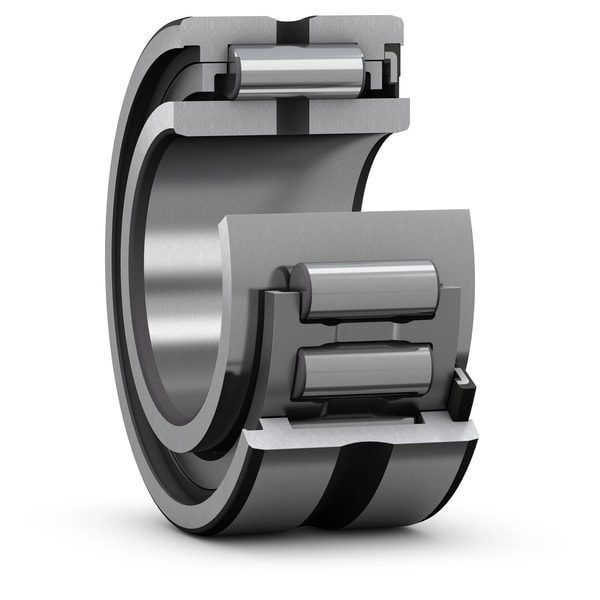

SKF NA4900RS needle roller bearing (machined rings). Needle roller bearing with machined inner and outer rings (NA48xx, NA49xx, NA69xx, RNA48xx, RNA49xx, RNA69xx per ISO 3245 / DIN 617). Ideal for high radial load in the smallest possible radial section — universal-joint yokes, camshaft supports, transmission planetary pinions.
Technical Specifications
- Type
- Needle roller bearing (machined rings)
- Designation
- SKF NA4900RS
- Bore d
- 10 mm
- HS code
- 8482.40
- Bore diameter
- 10 mm
- Outside diameter
- 22 mm
- Width
- 14 mm
- Basic dynamic load rating
- 7.37 kN
- Basic static load rating
- 8.15 kN
- Limiting speed
- 12000 r/min
- Bearing part
- Complete bearing
- Number of rows
- 1
- Outer ring type
- Machined (solid)
- Aligning feature
- Without
- Cage
- Sheet metal
- Number of flanges, outer ring
- 2
- Radial internal clearance
- CN
- Tolerance class
- Normal
- Material, bearing
- Bearing steel
- Coating
- Without
- Sealing
- Seal on one side
- Sealing type
- Contact
- Lubricant
- Grease
- Relubrication feature
- With
- Indicative carbon footprint for new product
- 0.09 kg CO2e
- Product net weight
- 0.025 kg
- eClass code
- 23-05-09-03
- UNSPSC code
- 31171512
Standards & Compliance
- Standard
- SKF designation convention (see description for governing ISO / DIN)
- Material
- As declared by SKF designation suffix
- Temperature Range
- Per SKF product data
- HS Code
- 8482.40
Cross References
- INA 4900
- Torrington / Timken 4900
- IKO 4900
- NTN 4900
- Equivalent: 4900 (INA)
- Equivalent: 4900 (Torrington / Timken)
- Equivalent: 4900 (IKO)
- Equivalent: 4900 (NTN)
Compatibility & Fitment
Interchange with peer OEM equivalents on identical boundary plan and execution — confirm cage, clearance, sealing and precision-class suffix before substitution.
