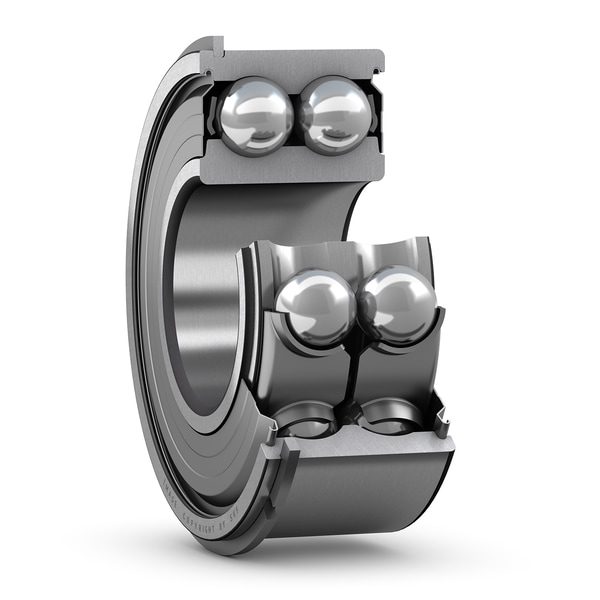

SKF MRC.5308CFFG Double-row angular contact ball bearing
Pricing
Request a quote
We reply within 24 hours
Product Description
SKF MRC.5308CFFG double-row angular contact ball bearing. Double-row angular contact ball bearing (32xx-2Z, 33xx, 52xx / 53xx) taking heavy combined radial and axial load in both directions from a single position. Contact angle 30° or 45°. Standard shielded (2Z) or contact-sealed (2RS1) execution. Suitable for pump impeller shafts, gearbox output shafts, propeller-shaft thrust ends on smaller marine gearboxes.
Technical Specifications
- Type
- Double-row angular contact ball bearing
- Designation
- SKF MRC.5308CFFG
- HS code
- 8482.10
- Bore diameter
- 40 mm
- Outside diameter
- 90 mm
- Width
- 36.5 mm
- Basic dynamic load rating
- 65.5 kN
- Basic static load rating
- 48 kN
- Reference speed
- 7500 r/min
- Limiting speed
- 7500 r/min
- Number of rows
- 2
- Locating feature, bearing outer ring
- Snap ring (fitted)
- Ring type
- One-piece inner and outer rings
- Universal matching bearing
- No
- Sealing
- Shield on both sides
- Sealing type
- Non-contact
- Lubricant
- Grease
- Relubrication feature
- Without
- Indicative carbon footprint for new product
- 3.8 kg CO2e
- Product net weight
- 1.03 kg
- eClass code
- 23-05-08-03
- UNSPSC code
- 31171531
Standards & Compliance
- Standard
- SKF designation convention (see description for governing ISO / DIN)
- Material
- As declared by SKF designation suffix
- Temperature Range
- Per SKF product data
- HS Code
- 8482.10
Cross References
- FAG 5308
- NSK 5308
- NTN 5308
- Timken 5308
- Koyo 5308
- Equivalent: 5308 (FAG)
- Equivalent: 5308 (NSK)
- Equivalent: 5308 (NTN)
- Equivalent: 5308 (Timken)
- Equivalent: 5308 (Koyo)
Compatibility & Fitment
Interchange with peer OEM equivalents on identical boundary plan and execution — confirm cage, clearance, sealing and precision-class suffix before substitution.
Product Documentation
More from SKF
SKF
SKF FRB10/440 Bearing housing accessory
SKF
SKF PAK30X40X4.5-L Hydraulic rod wiper seal
SKF

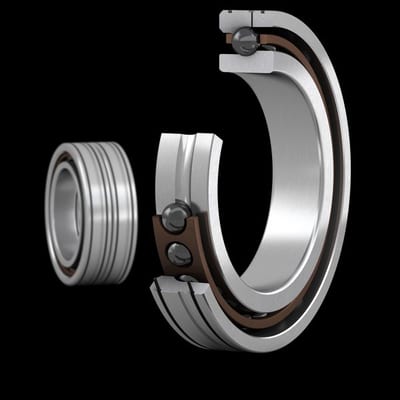

SKF 7008ACE/HCP4ALDGA Super-precision angular contact ball bearing
SKF
SKF MD125X100X25.4-L Hydraulic piston seal
SKF
SKF LORP53 Split pillow-block housing (SNL / SAF / SAW)
SKF
SKF PTB-40X55X9.9-J1S Hydraulic rod seal / buffer seal
SKF

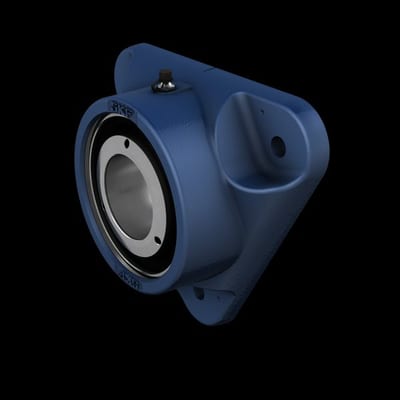

SKF FYNT40F Roller-bearing flanged unit
SKF
SKF OSNW38X6.15/16 Adapter sleeve
Technical guides
Catalogue entry last verified: 2026-08-13. A manufacturer datasheet is attached to this entry — confirm application-critical values against it.
Frequently asked questions
- Where can I buy MRC.5308CFFG?
- MRC.5308CFFG can be ordered from cballast.com as a SKF catalogue item: request a quotation on this page or email sales@cballast.com, and the order ships worldwide.
- What is the manufacturer part number for this SKF product?
- The manufacturer part number is MRC.5308CFFG.
- What is the HS code for MRC.5308CFFG?
- The customs tariff (HS) code for MRC.5308CFFG is 8482.10.
- Who manufactures MRC.5308CFFG?
- MRC.5308CFFG is a SKF product in the Bearings & Power Transmission range.
- Is a datasheet available for MRC.5308CFFG?
- Yes — the MRC.5308CFFG datasheet can be viewed and downloaded on this page.
- What is the minimum order quantity for MRC.5308CFFG?
- The minimum order quantity is 1.
- Is MRC.5308CFFG available?
- Yes — MRC.5308CFFG is available to order: fulfilment is from supplier stock in cBallast's European network, dispatched directly from the warehouse to the customer, with the exact lead time stated in the quotation (reply within 24 hours).
