SKF MRC.5204CFF Double-row angular contact ball bearing
Pricing
Request a quote
We reply within 24 hours
Product Description
SKF MRC.5204CFF double-row angular contact ball bearing. Double-row angular contact ball bearing (32xx-2Z, 33xx, 52xx / 53xx) taking heavy combined radial and axial load in both directions from a single position. Contact angle 30° or 45°. Standard shielded (2Z) or contact-sealed (2RS1) execution. Suitable for pump impeller shafts, gearbox output shafts, propeller-shaft thrust ends on smaller marine gearboxes.
Technical Specifications
- Type
- Double-row angular contact ball bearing
- Designation
- SKF MRC.5204CFF
- HS code
- 8482.10
- Bore diameter
- 20 mm
- Outside diameter
- 47 mm
- Width
- 20.6 mm
- Basic dynamic load rating
- 20.4 kN
- Basic static load rating
- 12.9 kN
- Reference speed
- 16000 r/min
- Limiting speed
- 14000 r/min
- Number of rows
- 2
- Locating feature, bearing outer ring
- Without
- Ring type
- One-piece inner and outer rings
- Universal matching bearing
- No
- Sealing
- Shield on both sides
- Sealing type
- Non-contact
- Lubricant
- Grease
- Relubrication feature
- Without
- Indicative carbon footprint for new product
- 0.56 kg CO2e
- Product net weight
- 0.153 kg
- eClass code
- 23-05-08-03
- UNSPSC code
- 31171531
Standards & Compliance
- Standard
- SKF designation convention (see description for governing ISO / DIN)
- Material
- As declared by SKF designation suffix
- Temperature Range
- Per SKF product data
- HS Code
- 8482.10
Cross References
- FAG 5204
- NSK 5204
- NTN 5204
- Timken 5204
- Koyo 5204
- Equivalent: 5204 (FAG)
- Equivalent: 5204 (NSK)
- Equivalent: 5204 (NTN)
- Equivalent: 5204 (Timken)
- Equivalent: 5204 (Koyo)
Compatibility & Fitment
Interchange with peer OEM equivalents on identical boundary plan and execution — confirm cage, clearance, sealing and precision-class suffix before substitution.
Product Documentation
More from SKF
SKF

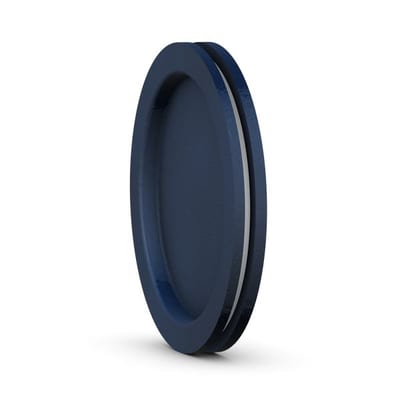

SKF ETS530 Bearing housing accessory
