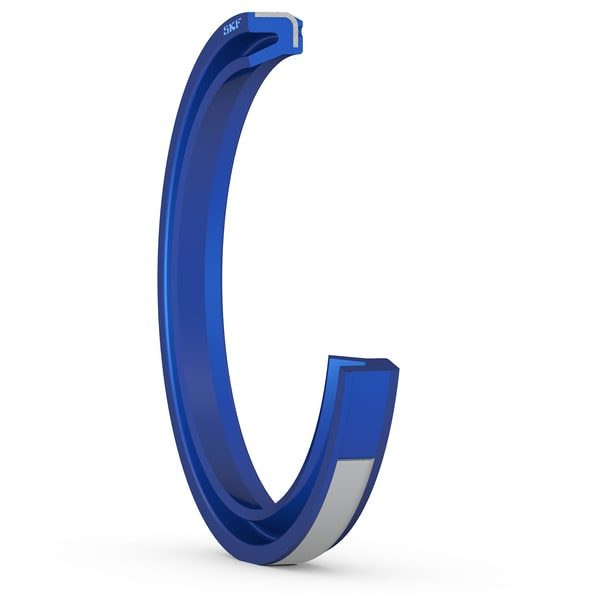

SKF MCW312-6500-312-H9B Hydraulic rod wiper seal
Pricing
Request a quote
We reply within 24 hours
Product Description
SKF MCW312-6500-312-H9B hydraulic rod wiper seal. Hydraulic cylinder wiper (scraper) seal — sits at the rod-side gland outboard of the primary rod seal to sweep debris, ice, salt spray and paint chips off the rod on the retract stroke. Metal-cased or all-polyurethane execution. Fits DIN 6210 / ISO 6194 wiper groove.
Technical Specifications
- Type
- Hydraulic rod wiper seal
- Designation
- SKF MCW312-6500-312-H9B
- HS code
- 4016.93
- Rod diameter
- 165.1 mm
- Housing groove bore diameter
- 180.98 mm
- Housing groove width
- 8.72 mm
- Bore type
- Metal-cased press-in wiper seal
- Design
- MCW
- Sealing lip material
- Polyurethane (TPU U-1023)
- OD feature (metal cased)
- Metal-cased
- Product net weight
- 0.0772 kg
- eClass code
- 23-07-01-90
- UNSPSC code
- 31181602
Standards & Compliance
- Standard
- SKF designation convention (see description for governing ISO / DIN)
- Material
- As declared by SKF designation suffix
- Temperature Range
- Per SKF product data
- HS Code
- 4016.93
Cross References
- Trelleborg 31265003129
- Parker 31265003129
- Freudenberg 31265003129
- Hallite 31265003129
- Equivalent: 31265003129 (Trelleborg)
- Equivalent: 31265003129 (Parker)
- Equivalent: 31265003129 (Freudenberg)
- Equivalent: 31265003129 (Hallite)
Compatibility & Fitment
Interchange with peer OEM equivalents on identical boundary plan and execution — confirm cage, clearance, sealing and precision-class suffix before substitution.
Product Documentation
More from SKF
SKF
SKF 7007ACD/HCP4ADT Super-precision angular contact ball bearing
SKF
SKF W12 Bearing lock nut (keyway type)
SKF
SKF LCP-125X112.7X14.7-ND1 Hydraulic piston seal
SKF
SKF LOR510 Split pillow-block housing (SNL / SAF / SAW)
SKF
SKF PTB-22X29X5.1-J1S Hydraulic rod seal / buffer seal
SKF
SKF F4BRP200-SRB-CRE Roller-bearing flanged unit
SKF
SKF OH3160H Adapter sleeve
SKF
SKF KDN.K10013AR0 Thin-section ball bearing (Reali-Slim)
Technical guides
Catalogue entry last verified: 2026-09-30. A manufacturer datasheet is attached to this entry — confirm application-critical values against it.
Frequently asked questions
- Where can I buy MCW312-6500-312-H9B?
- MCW312-6500-312-H9B can be ordered from cballast.com as a SKF catalogue item: request a quotation on this page or email sales@cballast.com, and the order ships worldwide.
- What is the manufacturer part number for this SKF product?
- The manufacturer part number is MCW312-6500-312-H9B.
- What is the HS code for MCW312-6500-312-H9B?
- The customs tariff (HS) code for MCW312-6500-312-H9B is 4016.93.
- Who manufactures MCW312-6500-312-H9B?
- MCW312-6500-312-H9B is a SKF product in the Seals & Gaskets range.
- Is a datasheet available for MCW312-6500-312-H9B?
- Yes — the MCW312-6500-312-H9B datasheet can be viewed and downloaded on this page.
- What is the minimum order quantity for MCW312-6500-312-H9B?
- The minimum order quantity is 1.
- Is MCW312-6500-312-H9B available?
- Yes — MCW312-6500-312-H9B is available to order: fulfilment is from supplier stock in cBallast's European network, dispatched directly from the warehouse to the customer, with the exact lead time stated in the quotation (reply within 24 hours).
