SKF LM772748/710 Single-row tapered roller bearing
Pricing
Request a quote
We reply within 24 hours
Product Description
SKF LM772748/710 single-row tapered roller bearing. Single-row tapered roller bearing designed to take combined heavy radial and one-direction axial load. Cone (inner ring), cup (outer ring) and rollers converge at a common apex on the bearing axis. Two bearings are always mounted in opposition. Metric dimensions per ISO 355; imperial to ANSI/ABMA 19.1.
Technical Specifications
- Type
- Single-row tapered roller bearing
- Designation
- SKF LM772748/710
- HS code
- 8482.20
- Bore diameter
- 488.95 mm
- Outside diameter
- 634.873 mm
- Width, total
- 84.138 mm
- Width, inner ring
- 84.138 mm
- Width, outer ring
- 61.912 mm
- Contact angle
- 17.5 °
- Basic dynamic load rating
- 1562 kN
- Basic static load rating
- 3650 kN
- Reference speed
- 600 r/min
- Limiting speed
- 800 r/min
- Bearing part
- Complete bearing
- Number of rows
- 1
- Locating feature, bearing outer ring
- Without
- Bore type
- Cylindrical
- Cage
- Sheet metal
- Arrangement of contact angle (double-row bearing)
- Not applicable
- Matched arrangement
- No
- Coating
- Without
- Sealing
- Without
- Lubricant
- None
- Relubrication feature
- Without
- Unit system
- Inch
- Candidate for remanufacturing
- Yes
- Indicative carbon footprint for new product
- 243 kg CO2e
- Indicative carbon footprint for remanufactured product
- 80.9 kg CO2e
- Product net weight
- 65.8 kg
- eClass code
- 23-05-09-10
Standards & Compliance
- Standard
- SKF designation convention
- Material
- As declared by SKF designation suffix
- Temperature Range
- Per SKF product data
- HS Code
- 8482.20
Cross References
- Timken 772748710
- NSK 772748710
- NTN 772748710
- FAG 772748710
- Koyo 772748710
- Equivalent: 772748710 (Timken)
- Equivalent: 772748710 (NSK)
- Equivalent: 772748710 (NTN)
- Equivalent: 772748710 (FAG)
- Equivalent: 772748710 (Koyo)
Compatibility & Fitment
Interchange with peer OEM equivalents on identical boundary plan and execution — confirm cage, clearance, sealing and precision-class suffix before substitution.
Product Documentation
More from SKF
SKF
SKF NU1028M/P53 Single-row cylindrical roller bearing (NU / N / NJ / NUP)
SKF

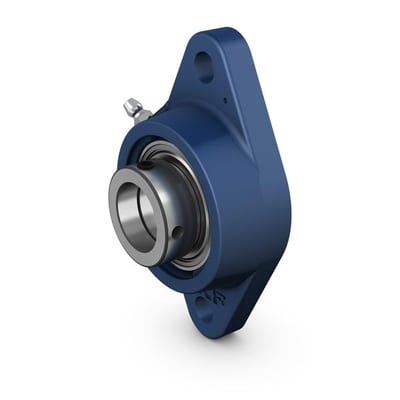

SKF FYTB1.15/16FM Flanged ball bearing unit (UCF / UCFC / UCFL)
SKF

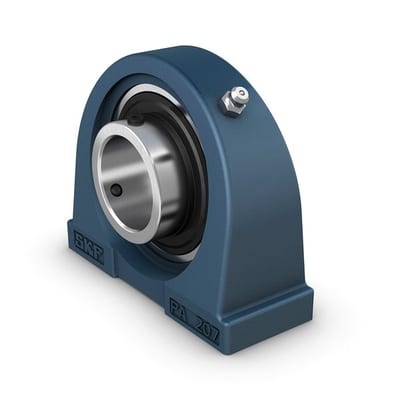

SKF UCPA208/H Pillow block ball bearing unit (UCP / UEP / UKP)
SKF
SKF LM772748/710/HA1 Single-row tapered roller bearing
SKF
SKF NU1028ML Single-row cylindrical roller bearing (NU / N / NJ / NUP)
SKF
SKF FYTB1.15/16TF Flanged ball bearing unit (UCF / UCFC / UCFL)
SKF

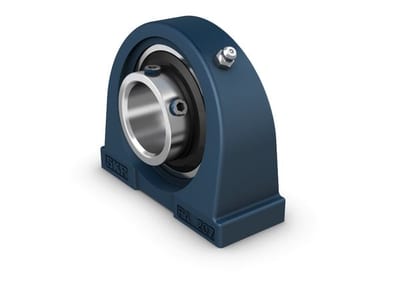

SKF UCPA209 Pillow block ball bearing unit (UCP / UEP / UKP)
