SKF LM48510/Q Single-row tapered roller bearing
Pricing
Request a quote
We reply within 24 hours
Product Description
SKF LM48510/Q single-row tapered roller bearing. Single-row tapered roller bearing designed to take combined heavy radial and one-direction axial load. Cone (inner ring), cup (outer ring) and rollers converge at a common apex on the bearing axis. Two bearings are always mounted in opposition. Metric dimensions per ISO 355; imperial to ANSI/ABMA 19.1.
Technical Specifications
- Type
- Single-row tapered roller bearing
- Designation
- SKF LM48510/Q
- Bore d
- 50 mm
- HS code
- 8482.20
- Outside diameter
- 65.088 mm
- Width, total
- 13.97 mm
- Width, outer ring
- 13.97 mm
- Contact angle
- 14.1 °
- Bearing part
- Outer ring (cup)
- Arrangement of contact angle (double-row bearing)
- Not applicable
- Matched arrangement
- No
- Coating
- Without
- Sealing
- Without
- Relubrication feature
- Without
- Unit system
- Inch
- Indicative carbon footprint for new product
- 0.32 kg CO2e
- Product net weight
- 0.086 kg
- eClass code
- 23-05-09-10
- UNSPSC code
- 31171516
Standards & Compliance
- Standard
- SKF designation convention
- Material
- As declared by SKF designation suffix
- Temperature Range
- Per SKF product data
- HS Code
- 8482.20
Cross References
- Timken 48510
- NSK 48510
- NTN 48510
- FAG 48510
- Koyo 48510
- Equivalent: 48510 (Timken)
- Equivalent: 48510 (NSK)
- Equivalent: 48510 (NTN)
- Equivalent: 48510 (FAG)
- Equivalent: 48510 (Koyo)
Compatibility & Fitment
Interchange with peer OEM equivalents on identical boundary plan and execution — confirm cage, clearance, sealing and precision-class suffix before substitution.
Product Documentation
More from SKF
SKF
SKF NU1013ECPH Single-row cylindrical roller bearing (NU / N / NJ / NUP)
SKF
SKF FYJ512 Flanged ball bearing unit (UCF / UCFC / UCFL)
SKF
SKF UCP209-28 Pillow block ball bearing unit (UCP / UEP / UKP)
SKF
SKF LM48510/VA983 Single-row tapered roller bearing
SKF
SKF NU1013ML Single-row cylindrical roller bearing (NU / N / NJ / NUP)
SKF

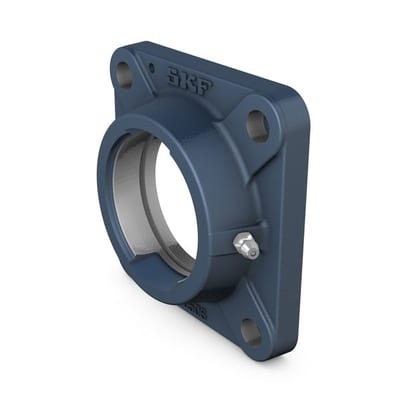

SKF FYJ513 Flanged ball bearing unit (UCF / UCFC / UCFL)
SKF

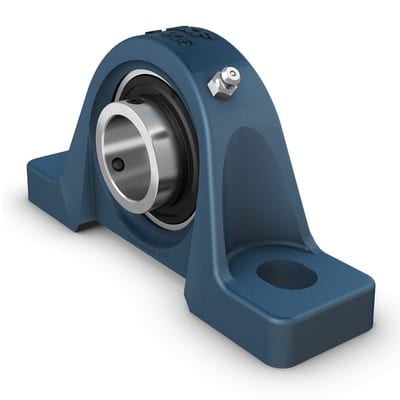

SKF UCP209/H Pillow block ball bearing unit (UCP / UEP / UKP)
