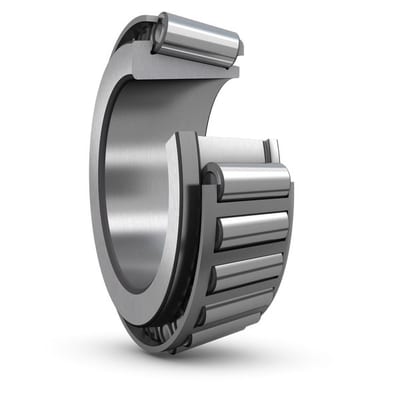

SKF L44649/610/VU990 Single-row tapered roller bearing

SKF L44649/610/VU990 single-row tapered roller bearing. Single-row tapered roller bearing designed to take combined heavy radial and one-direction axial load. Cone (inner ring), cup (outer ring) and rollers converge at a common apex on the bearing axis. Two bearings are always mounted in opposition. Metric dimensions per ISO 355; imperial to ANSI/ABMA 19.1.

Type

Single-row tapered roller bearing

Designation

SKF L44649/610/VU990

HS code

8482.20

Bore diameter

26.988 mm

Outside diameter

50.292 mm

Width, total

14.732 mm

Width, inner ring

14.732 mm

Width, outer ring

10.668 mm

Contact angle

14 °

Basic dynamic load rating

27.8 kN

Basic static load rating

30 kN

Reference speed

10000 r/min

Limiting speed

13000 r/min

Bearing part

Complete bearing

Number of rows

1

Locating feature, bearing outer ring

Without

Bore type

Cylindrical

Cage

Sheet metal

Arrangement of contact angle (double-row bearing)

Not applicable

Matched arrangement

No

Coating

Without

Sealing

Without

Lubricant

None

Relubrication feature

Without

Unit system

Inch

Indicative carbon footprint for new product

0.43 kg CO2e

Product net weight

0.115 kg

eClass code

23-05-09-10

UNSPSC code

31171516

Standard

SKF designation convention

Material

As declared by SKF designation suffix

Temperature Range

Per SKF product data

HS Code

8482.20

• Timken 44649610990
• NSK 44649610990
• NTN 44649610990
• FAG 44649610990
• Koyo 44649610990
• Equivalent: 44649610990 (Timken)
• Equivalent: 44649610990 (NSK)
• Equivalent: 44649610990 (NTN)
• Equivalent: 44649610990 (FAG)
• Equivalent: 44649610990 (Koyo)
