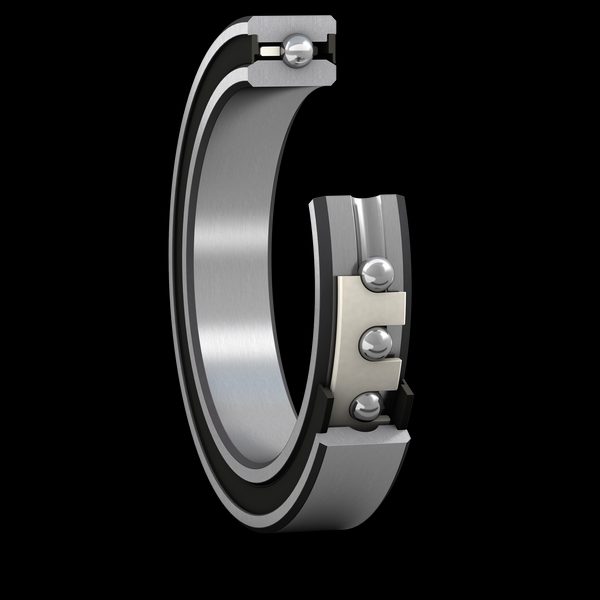

SKF KDN.JHA10XL0 Thin-section ball bearing (Reali-Slim)
Pricing
Request a quote
We reply within 24 hours
Product Description
SKF KDN.JHA10XL0 thin-section ball bearing (reali-slim). Constant-cross-section thin-section ball bearing (Reali-Slim / Kaydon KA / KB / KC / KD / KG series equivalent) where the cross-section thickness stays constant regardless of bore size, allowing large-bore compact designs in gimbals, robotics, medical imaging and satellite antenna slew rings.
Technical Specifications
- Type
- Thin-section ball bearing (Reali-Slim)
- Designation
- SKF KDN.JHA10XL0
- HS code
- 8482.10
- Bore diameter
- 25.4 mm
- Outside diameter
- 34.925 mm
- Width
- 6.35 mm
- Radial cross section
- 4.763 mm
- Contact angle
- 30 °
- Limiting speed
- 3000 r/min
- Basic dynamic load rating
- 1.94 kN
- Basic static load rating
- 1.91 kN
- Rolling bearing type
- Four-point contact ball bearing (type X)
- Contact type
- Four-point contact
- Number of rows
- 1
- Cage
- Non-metallic
- Matched arrangement
- No
- Material, bearing
- Bearing steel
- Coating
- Without
- Sealing
- Seal on both sides
- Sealing type
- Contact
- Lubricant
- Grease
- Relubrication feature
- Without
- Unit system
- Inch
- Indicative carbon footprint for new product
- 0.07 kg CO2e
- Product net weight
- 0.0181 kg
- eClass code
- 23-05-08-07
- UNSPSC code
- 31171538
Standards & Compliance
- Standard
- SKF designation convention (see description for governing ISO / DIN)
- Material
- As declared by SKF designation suffix
- Temperature Range
- Per SKF product data
- HS Code
- 8482.10
Cross References
- Kaydon 100
- RBC 100
- Silverthin 100
- Equivalent: 100 (Kaydon)
- Equivalent: 100 (RBC)
- Equivalent: 100 (Silverthin)
Compatibility & Fitment
Interchange with peer OEM equivalents on identical boundary plan and execution — confirm cage, clearance, sealing and precision-class suffix before substitution.
