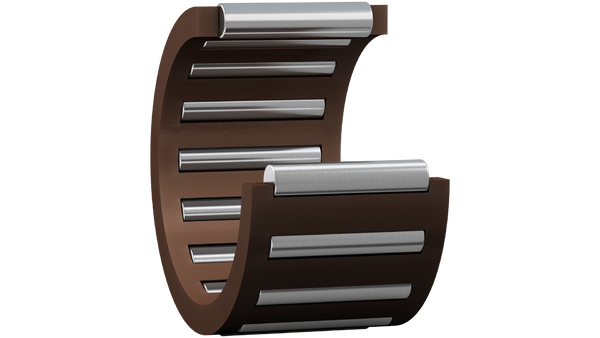

SKF K10X13X13TN Needle roller and cage assembly (K / KBK / KZK)
Pricing
Request a quote
We reply within 24 hours
Product Description
SKF K10X13X13TN needle roller and cage assembly (k / kbk / kzk). Needle roller and cage assembly with no supplied inner or outer race — installed between a hardened, ground shaft and a hardened, ground housing bore. Provides the smallest possible radial cross-section. Series K / KBK per ISO 3245. Suitable for planetary-gear pinions, universal-joint yokes.
Technical Specifications
- Type
- Needle roller and cage assembly (K / KBK / KZK)
- Designation
- SKF K10X13X13TN
- HS code
- 8482.40
- Bore diameter of needle roller complement
- 10 mm
- Outside diameter
- 13 mm
- Outside diameter of needle roller complement
- 13 mm
- Width
- 13 mm
- Basic dynamic load rating
- 5.94 kN
- Basic static load rating
- 8 kN
- Reference speed
- 28000 r/min
- Limiting speed
- 32000 r/min
- Bearing part
- Needle roller and cage assembly
- Number of rows
- 1
- Outer ring type
- Not applicable
- Aligning feature
- Without
- Cage
- Non-metallic
- Tolerance class
- Normal
- Material, bearing
- Bearing steel
- Coating
- Without
- Sealing
- Without
- Lubricant
- None
- Relubrication feature
- Without
- Indicative carbon footprint for new product
- 0.01 kg CO2e
- Product net weight
- 0.0027 kg
- eClass code
- 23-05-09-03
- UNSPSC code
- 31171512
Standards & Compliance
- Standard
- SKF designation convention
- Material
- As declared by SKF designation suffix
- Temperature Range
- Per SKF product data
- HS Code
- 8482.40
Cross References
- INA 101313
- Torrington / Timken 101313
- IKO 101313
- NTN 101313
- Equivalent: 101313 (INA)
- Equivalent: 101313 (Torrington / Timken)
- Equivalent: 101313 (IKO)
- Equivalent: 101313 (NTN)
Compatibility & Fitment
Interchange with peer OEM equivalents on identical boundary plan and execution — confirm cage, clearance, sealing and precision-class suffix before substitution.
