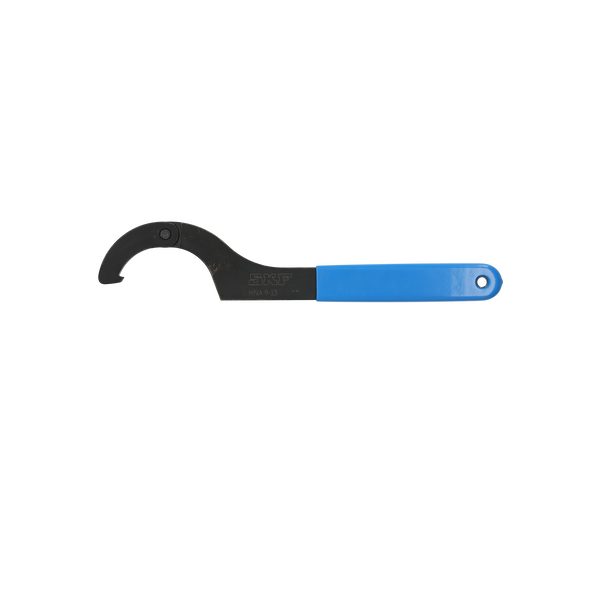

SKF HNA9-13 Bearing mounting / dismounting tool
Pricing
Request a quote
We reply within 24 hours
Product Description
SKF HNA9-13 bearing mounting / dismounting tool. Precision fitting tool — impact ring set (TMFT), induction heater (TIH), oil-injection dismounting kit (TMOF), hydraulic pull-up nut (HMV), or three-arm mechanical puller (TMMR / TMMD) — used to mount and dismount rolling bearings without damage.
Technical Specifications
- Type
- Bearing mounting / dismounting tool
- Designation
- SKF HNA9-13
- HS code
- 8205.59
- Nose width (Nₖ)
- 10 mm
- Nose height (Nₕ)
- 4 mm
- Thickness (n)
- 10 mm
- Length (L)
- 290 mm
- Working length (l)
- 244 mm
- Height (H)
- 60 mm
- Recommended applications
- A versatile tool, covering multiple lock nut sizes, when working with of lock nuts on shafts, adapter sleeves, and withdrawal sleeves in various applications.
- Series
- Hook spanner, adjustable, HN A
- Allows bearing mounting
- Yes, angle method or with clearance reduction measurement
- Fits on lock nuts inside SKF split pillow block housings (SNL)
- No
- Suitable SKF Locknut
- KM 9, KM 10, KM 11, KM 12, KM 13, KMF 9, KMF 10, KMF 11, KMF 12, KMF 13, KMFE 9, KMFE 10, KMFE 11, KMFE 11 H, KMFE 12, KMFE 13, KMK 9, KMK 10, KMK 11, KMK 12, KMK 13, KMT 8, KMT 9, KMT 10, KMT 11, KMT 12, N 09, N 10, N 11, N 12, N 13
- DIN 1804M
- M40x1,5, M42x1,5, M45x1,5, M48x1,5, M50x1,5, M52x1,5, M55x1,5
- Material
- Medium carbon steel, hardened and tempered
- Material handle
- Durable soft plastic
- Coating
- Black oxide
- Colour
- Black;Blue handle
- Country of Manufacturing (COM code)
- 18 - Germany
- Product net weight
- 0.36 kg
- eClass code
- 23-05-19-01
- UNSPSC code
- 27111712
Standards & Compliance
- Standard
- SKF designation convention
- Material
- As declared by SKF designation suffix
- Temperature Range
- Per SKF product data
- HS Code
- 8205.59
Cross References
- Enerpac 913
- Simatec 913
- Bega 913
- Equivalent: 913 (Enerpac)
- Equivalent: 913 (Simatec)
- Equivalent: 913 (Bega)
Compatibility & Fitment
Interchange with peer OEM equivalents on identical boundary plan and execution — confirm cage, clearance, sealing and precision-class suffix before substitution.
