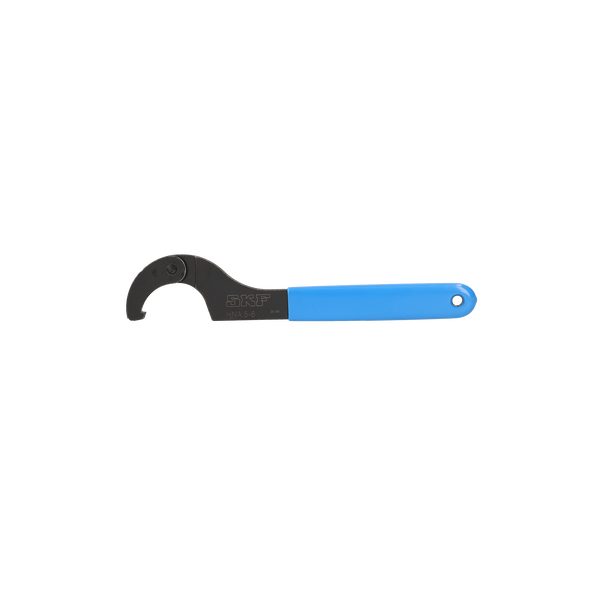

SKF HNA5-8 Bearing mounting / dismounting tool
Pricing
Request a quote
We reply within 24 hours
Product Description
SKF HNA5-8 bearing mounting / dismounting tool. Precision fitting tool — impact ring set (TMFT), induction heater (TIH), oil-injection dismounting kit (TMOF), hydraulic pull-up nut (HMV), or three-arm mechanical puller (TMMR / TMMD) — used to mount and dismount rolling bearings without damage.
Technical Specifications
- Type
- Bearing mounting / dismounting tool
- Designation
- SKF HNA5-8
- HS code
- 8205.59
- Nose width (Nₖ)
- 6 mm
- Nose height (Nₕ)
- 3 mm
- Thickness (n)
- 11 mm
- Length (L)
- 210 mm
- Working length (l)
- 180 mm
- Height (H)
- 41 mm
- Recommended applications
- A versatile tool, covering multiple lock nut sizes, when working with of lock nuts on shafts, adapter sleeves, and withdrawal sleeves in various applications.
- Series
- Hook spanner, adjustable, HN A
- Allows bearing mounting
- Yes, angle method or with clearance reduction measurement
- Fits on lock nuts inside SKF split pillow block housings (SNL)
- No
- Suitable SKF Locknut
- KM 5, KM 6, KM 7, KM 8, KMF 5, KMF 6, KMF7, KMF 8, KMFE 5, KMFE 6, KMFE 7, KMFE 8, KMK 5, KMK 6, KMK 7, KMK 8, KMT 3, KMT 4, KMT 5, KMT 6, KMT 7, N 05, N 06, N 07, N 08
- DIN 1804M
- M20x1,5, M22x1,5, M24x1,5, M26x1,5, M28x1,5, M30x1,5, M32x1,5, M35x1,5, M38x1,5
- Material
- Alloy engineering steel, hardened and tempered
- Material handle
- Steel
- Coating
- Black oxide
- Colour
- Black metallic
- Country of Manufacturing (COM code)
- 18 - Germany
- Product net weight
- 0.17 kg
- eClass code
- 23-05-19-01
- UNSPSC code
- 27111712
Standards & Compliance
- Standard
- SKF designation convention
- Material
- As declared by SKF designation suffix
- Temperature Range
- Per SKF product data
- HS Code
- 8205.59
Compatibility & Fitment
Interchange with peer OEM equivalents on identical boundary plan and execution — confirm cage, clearance, sealing and precision-class suffix before substitution.
Product Documentation
More from SKF
SKF
SKF IR17X20X20.5 Needle roller bearing component (inner ring / cage assembly / individual roller)
SKF
SKF K16X22X12 Needle roller and cage assembly (K / KBK / KZK)
SKF
SKF N1015KTN/VQ497 Super-precision cylindrical roller bearing (NN 30XX / N 10XX)
SKF
SKF NATR25 Track roller — support roller
SKF
SKF P2B102-WF Pillow block ball bearing unit (UCP / UEP / UKP)
SKF
SKF PHFFX10-70X110 Keyless shaft bushing / locking assembly
SKF
SKF SAA50ES-2RS Rod end (spherical plain bearing with threaded eye)
SKF
SKF SNL3068G SNL 30/31/32 split pillow-block housing
Technical guides
Catalogue entry last verified: 2026-08-13. A manufacturer datasheet is attached to this entry — confirm application-critical values against it.
Frequently asked questions
- Where can I buy HNA5-8?
- HNA5-8 can be ordered from cballast.com as a SKF catalogue item: request a quotation on this page or email sales@cballast.com, and the order ships worldwide.
- What is the manufacturer part number for this SKF product?
- The manufacturer part number is HNA5-8.
- What is the HS code for HNA5-8?
- The customs tariff (HS) code for HNA5-8 is 8205.59.
- Who manufactures HNA5-8?
- HNA5-8 is a SKF product in the Tools & Workshop Consumables range.
- Is a datasheet available for HNA5-8?
- Yes — the HNA5-8 datasheet can be viewed and downloaded on this page.
- What is the minimum order quantity for HNA5-8?
- The minimum order quantity is 1.
- Is HNA5-8 available?
- Yes — HNA5-8 is available to order: fulfilment is from supplier stock in cBallast's European network, dispatched directly from the warehouse to the customer, with the exact lead time stated in the quotation (reply within 24 hours).
