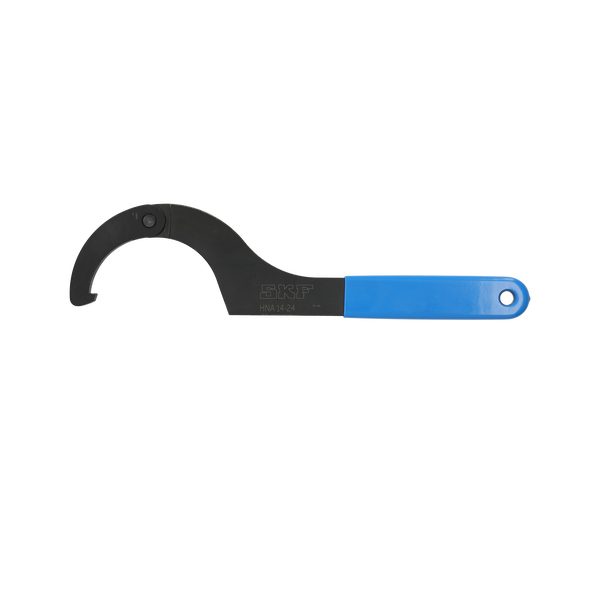

SKF HNA14-24 Bearing mounting / dismounting tool
Pricing
Request a quote
We reply within 24 hours
Product Description
SKF HNA14-24 bearing mounting / dismounting tool. Precision fitting tool — impact ring set (TMFT), induction heater (TIH), oil-injection dismounting kit (TMOF), hydraulic pull-up nut (HMV), or three-arm mechanical puller (TMMR / TMMD) — used to mount and dismount rolling bearings without damage.
Technical Specifications
- Type
- Bearing mounting / dismounting tool
- Designation
- SKF HNA14-24
- HS code
- 8205.59
- Nose width (Nₖ)
- 12 mm
- Nose height (Nₕ)
- 5.5 mm
- Thickness (n)
- 12 mm
- Length (L)
- 332 mm
- Working length (l)
- 275 mm
- Height (H)
- 83 mm
- Recommended applications
- A versatile tool, covering multiple lock nut sizes, when working with of lock nuts on shafts, adapter sleeves, and withdrawal sleeves in various applications.
- Series
- Hook spanner, adjustable, HN A
- Allows bearing mounting
- No
- Fits on lock nuts inside SKF split pillow block housings (SNL)
- No
- Suitable SKF Locknut
- KM 14, KM 15, KM 16, KM 17, KM 18, KM 19, KM 20, KM 22, KM 24, KMF 14, KMF 15, KMF 16, KMF 17, KMF 18, KMF 19, KMF 20, KMFE 14, KMFE 15, KMFE 16, KMFE 17, KMFE 18, KMFE 19, KMFE 20, KMFE 21, KMFE 22, KMFE 24, KMK 14, KMK 15, KMK 16, KMK 17, KMK 18, KMK 19, KMK 20, KML 24, KML 26, KMT 13, KMT 14, KMT 15, KMT 16, KMT 17, KMT 18, KMT 19, KMT 20, KMT 20, KMT 22, KMT 24, KMT 24, N 14, N 15, N 16, N 17, N 18, N 19, N 20, N 21, N 22, N 24, N 022, N 024, AN 15, AN 16, AN 17, AN 18, AN 19, AN 20, AN 21, AN 22, AN 24
- DIN 1804M
- M58x1,5, M60x1,5, M62x1,5, M65x1,5, M68x1,5, M70x1,5, M72x1,5, M75x1,5, M80x2, M85x2, M90x2, M95x2, M100x2, M105x2 M110x2
- Material
- Medium carbon steel, hardened and tempered
- Material handle
- Durable soft plastic
- Coating
- Black oxide
- Colour
- Black;Blue handle
- Country of Manufacturing (COM code)
- 18 - Germany
- Product net weight
- 0.6 kg
- eClass code
- 23-05-19-01
- UNSPSC code
- 27111712
Standards & Compliance
- Standard
- SKF designation convention
- Material
- As declared by SKF designation suffix
- Temperature Range
- Per SKF product data
- HS Code
- 8205.59
Cross References
- Enerpac 1424
- Simatec 1424
- Bega 1424
- Equivalent: 1424 (Enerpac)
- Equivalent: 1424 (Simatec)
- Equivalent: 1424 (Bega)
Compatibility & Fitment
Interchange with peer OEM equivalents on identical boundary plan and execution — confirm cage, clearance, sealing and precision-class suffix before substitution.
