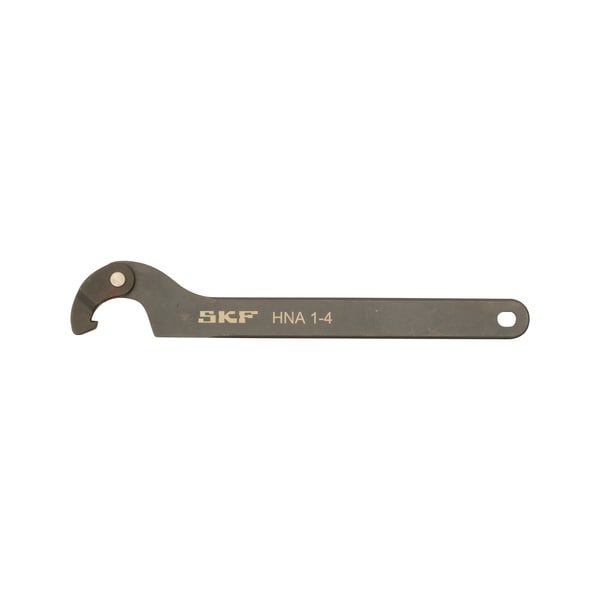

SKF HNA1-4 Bearing mounting / dismounting tool
Pricing
Request a quote
We reply within 24 hours
Product Description
SKF HNA1-4 bearing mounting / dismounting tool. Precision fitting tool — impact ring set (TMFT), induction heater (TIH), oil-injection dismounting kit (TMOF), hydraulic pull-up nut (HMV), or three-arm mechanical puller (TMMR / TMMD) — used to mount and dismount rolling bearings without damage.
Technical Specifications
- Type
- Bearing mounting / dismounting tool
- Designation
- SKF HNA1-4
- HS code
- 8205.59
- Nose width (Nₖ)
- 5 mm
- Nose height (Nₕ)
- 2 mm
- Thickness (n)
- 8 mm
- Length (L)
- 165 mm
- Working length (l)
- 145 mm
- Height (H)
- 28 mm
- Recommended applications
- A versatile tool, covering multiple lock nut sizes, when working with of lock nuts on shafts, adapter sleeves, and withdrawal sleeves in various applications.
- Series
- Hook spanner, adjustable, HN A
- Allows bearing mounting
- Yes, angle method or with clearance reduction measurement
- Fits on lock nuts inside SKF split pillow block housings (SNL)
- No
- Suitable SKF Locknut
- KM 1, KM 2, KM 3, KM 4, KMF 0, KMF 1, KMF 2, KMF 3, KMF 4, KMFE 1, KMFE 2, KMFE 3, KMFE 4, KMK 0, KMK 1, KMK 2, KMK 3, KMK 4, KMT 0, KMT 1, KMT 2, N 01, N 02, N 03, N 04
- DIN 1804M
- M10x1, M12x1,5 M14x1,5, M16x1,5, M18x1,5
- Material
- Alloy engineering steel, hardened and tempered
- Material handle
- Steel
- Coating
- Black oxide
- Colour
- Black metallic
- Country of Manufacturing (COM code)
- 18 - Germany
- Product net weight
- 0.08 kg
- eClass code
- 23-05-19-01
- UNSPSC code
- 27111712
Standards & Compliance
- Standard
- SKF designation convention
- Material
- As declared by SKF designation suffix
- Temperature Range
- Per SKF product data
- HS Code
- 8205.59
Compatibility & Fitment
Interchange with peer OEM equivalents on identical boundary plan and execution — confirm cage, clearance, sealing and precision-class suffix before substitution.
Product Documentation
More from SKF
SKF

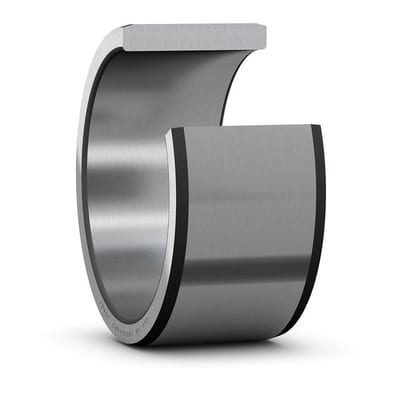

SKF IR17X20X16.5 Needle roller bearing component (inner ring / cage assembly / individual roller)
SKF
SKF K16X20X13 Needle roller and cage assembly (K / KBK / KZK)
SKF
SKF N1015KTN/HC5SP Super-precision cylindrical roller bearing (NN 30XX / N 10XX)
SKF
SKF NATR20PP Track roller — support roller
SKF
SKF P2B102-TF Pillow block ball bearing unit (UCP / UEP / UKP)
SKF
SKF PHFFX10-60X90 Keyless shaft bushing / locking assembly
SKF
SKF SAA45ES-2RS Rod end (spherical plain bearing with threaded eye)
SKF

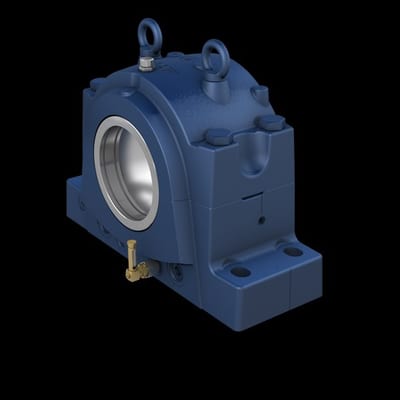

SKF SNL3064TURT SNL 30/31/32 split pillow-block housing
