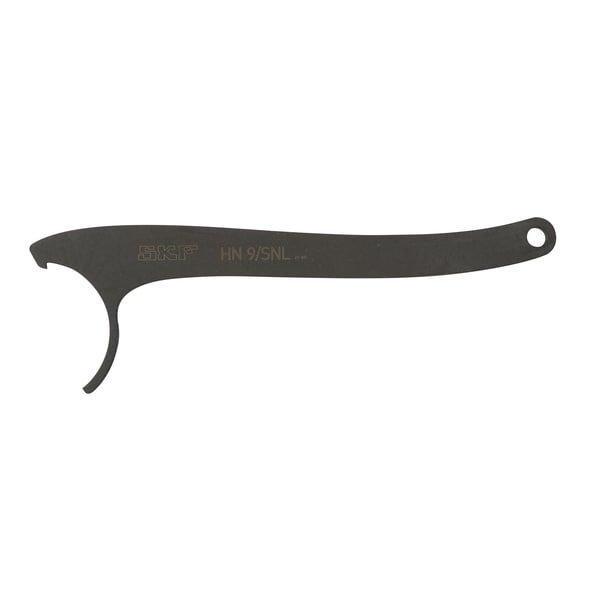

SKF HN9/SNL Bearing mounting / dismounting tool

SKF HN9/SNL bearing mounting / dismounting tool. Precision fitting tool — impact ring set (TMFT), induction heater (TIH), oil-injection dismounting kit (TMOF), hydraulic pull-up nut (HMV), or three-arm mechanical puller (TMMR / TMMD) — used to mount and dismount rolling bearings without damage.

Type

Bearing mounting / dismounting tool

Designation

SKF HN9/SNL

HS code

8205.59

Nose width (Nₖ)

7 mm

Nose height (Nₕ)

3 mm

Thickness (n)

7 mm

Length (L)

247 mm

Working length (l)

245 mm

Height (H)

77 mm

Recommended applications

Special designed tool for tightening/loosening lock nuts in split plummer (pillow) block housings, where space is the limiting factor. Alternative use is general bearing arrangements and of lock nuts on shafts, adapter sleeves, and withdrawal sleeves in a wide variety of applications.

Series

Hook spanner, for housings, HN SNL

Allows bearing mounting

Yes, angle method or with clearance reduction measurement

Fits on lock nuts inside SKF split pillow block housings (SNL)

Yes

Suitable SKF Locknut

KM 9, KMFE 9, KMFE 9 H, KMK 9, KMT 8, N 09

Material

Medium carbon steel, hardened and tempered

Material handle

Steel

Coating

Black phosphated

Colour

Black metallic

Country of Manufacturing (COM code)

35 - Slovenia

Product net weight

0.3 kg

eClass code

23-05-19-01

UNSPSC code

27111712

Standard

SKF designation convention

Material

As declared by SKF designation suffix

Temperature Range

Per SKF product data

HS Code

8205.59
