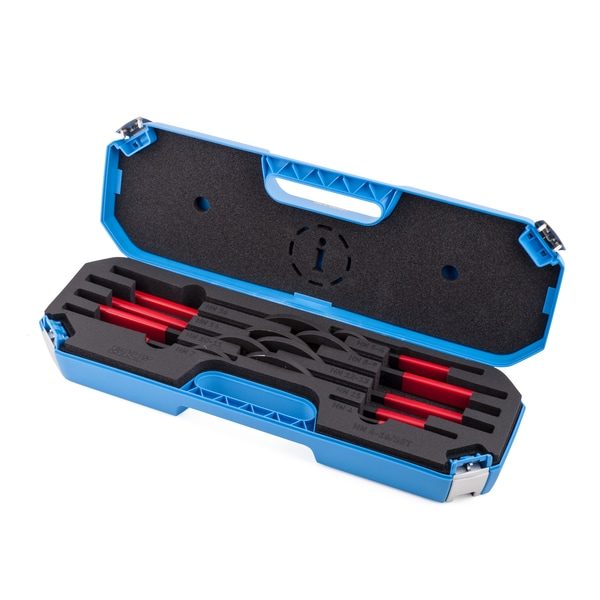

SKF HN4-16/SET Bearing mounting / dismounting tool

SKF HN4-16/SET bearing mounting / dismounting tool. Precision fitting tool — impact ring set (TMFT), induction heater (TIH), oil-injection dismounting kit (TMOF), hydraulic pull-up nut (HMV), or three-arm mechanical puller (TMMR / TMMD) — used to mount and dismount rolling bearings without damage.

Type

Bearing mounting / dismounting tool

Designation

SKF HN4-16/SET

HS code

8205.59

Case dimensions (l x h x w)

530 x 85 x 180 mm

Recommended applications

As a set suitable for a very wide selection of applications where various lock nuts are used. Designed for tightening and loosing said lock nuts on shafts, adapter sleeves, and withdrawal sleeves.

Series

Hook spanner, standard, HN

Version

Kit

Allows bearing mounting

Yes, for the smaller sizes the angle method or with clearance reduction measurement

Fits on lock nuts inside SKF split pillow block housings (SNL)

No

Suitable SKF Locknut

KM 4 to 16, KMF 4 to 16, KMFE 4 to 16, KMK 4 to 16, KMT 1 to 15, N 04 to 16, AN 14 to 16

DIN 1804M

M14x1,5, M70x1,5

Content

9x Hookspanners (HN 4, HN 5-6, HN 7, HN 8-9, HN 10-11, HN 12-13, HN 14, HN 15, HN 16), 1x Carrying case (size X)

Country of Manufacturing (COM code)

35 - Slovenia

Product net weight

3.39 kg

eClass code

23-05-19-01

UNSPSC code

27111712

Standard

SKF designation convention

Material

As declared by SKF designation suffix

Temperature Range

Per SKF product data

HS Code

8205.59
