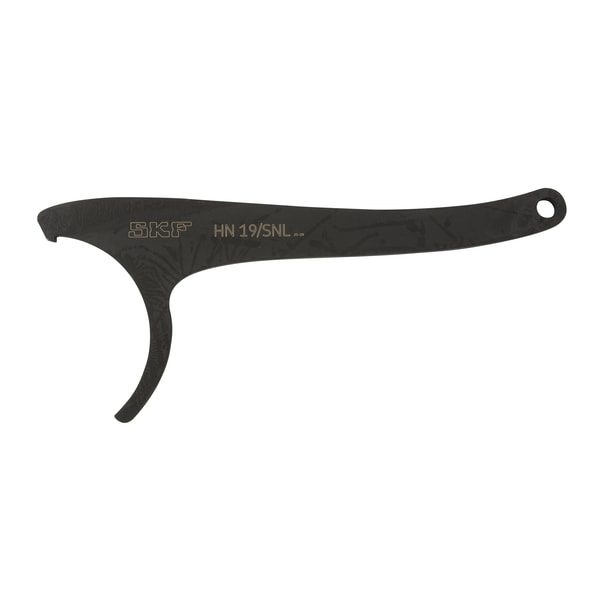

SKF HN19/SNL Bearing mounting / dismounting tool
Pricing
Request a quote
We reply within 24 hours
Product Description
SKF HN19/SNL bearing mounting / dismounting tool. Precision fitting tool — impact ring set (TMFT), induction heater (TIH), oil-injection dismounting kit (TMOF), hydraulic pull-up nut (HMV), or three-arm mechanical puller (TMMR / TMMD) — used to mount and dismount rolling bearings without damage.
Technical Specifications
- Type
- Bearing mounting / dismounting tool
- Designation
- SKF HN19/SNL
- HS code
- 8205.59
- Nose width (Nₖ)
- 10 mm
- Nose height (Nₕ)
- 5 mm
- Thickness (n)
- 10 mm
- Length (L)
- 323 mm
- Working length (l)
- 325 mm
- Height (H)
- 143 mm
- Recommended applications
- Special designed tool for tightening/loosening lock nuts in split plummer (pillow) block housings, where space is the limiting factor. Alternative use is general bearing arrangements and of lock nuts on shafts, adapter sleeves, and withdrawal sleeves in a wide variety of applications.
- Series
- Hook spanner, for housings, HN SNL
- Allows bearing mounting
- No
- Fits on lock nuts inside SKF split pillow block housings (SNL)
- Yes
- Suitable SKF Locknut
- KM 19, KMFE 19, KMK 19, KMT 18, AN 19
- Material
- Medium carbon steel, hardened and tempered
- Material handle
- Steel
- Coating
- Black phosphated
- Colour
- Black metallic
- Country of Manufacturing (COM code)
- 35 - Slovenia
- Product net weight
- 0.87 kg
- eClass code
- 23-05-19-01
- UNSPSC code
- 27111712
Standards & Compliance
- Standard
- SKF designation convention
- Material
- As declared by SKF designation suffix
- Temperature Range
- Per SKF product data
- HS Code
- 8205.59
Compatibility & Fitment
Interchange with peer OEM equivalents on identical boundary plan and execution — confirm cage, clearance, sealing and precision-class suffix before substitution.
Product Documentation
More from SKF
SKF
SKF IR12X16X12IS1 Needle roller bearing component (inner ring / cage assembly / individual roller)
SKF
SKF K12X17X13TN Needle roller and cage assembly (K / KBK / KZK)
SKF
SKF N1012KPHA/HC5SP Super-precision cylindrical roller bearing (NN 30XX / N 10XX)
SKF
SKF NA2206.2RSX Track roller — support roller
SKF

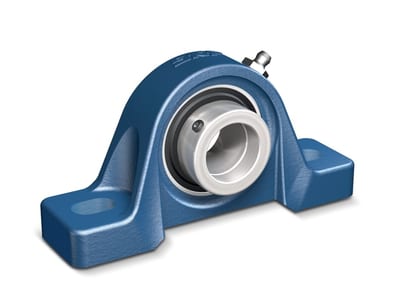

SKF P2B012-FM Pillow block ball bearing unit (UCP / UEP / UKP)
SKF
SKF PHFFX10-260X325 Keyless shaft bushing / locking assembly
SKF

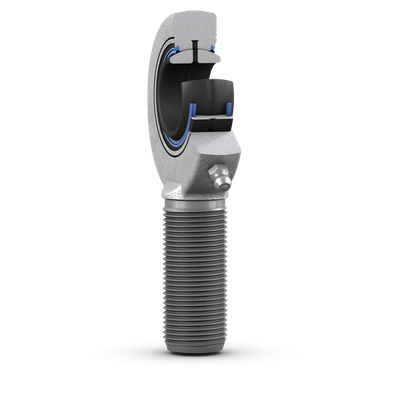

SKF SA30ES-2RS Rod end (spherical plain bearing with threaded eye)
SKF
SKF SNL3044G SNL 30/31/32 split pillow-block housing
Technical guides
Catalogue entry last verified: 2026-08-13. A manufacturer datasheet is attached to this entry — confirm application-critical values against it.
Frequently asked questions
- Where can I buy HN19/SNL?
- HN19/SNL can be ordered from cballast.com as a SKF catalogue item: request a quotation on this page or email sales@cballast.com, and the order ships worldwide.
- What is the manufacturer part number for this SKF product?
- The manufacturer part number is HN19/SNL.
- What is the HS code for HN19/SNL?
- The customs tariff (HS) code for HN19/SNL is 8205.59.
- Who manufactures HN19/SNL?
- HN19/SNL is a SKF product in the Tools & Workshop Consumables range.
- Is a datasheet available for HN19/SNL?
- Yes — the HN19/SNL datasheet can be viewed and downloaded on this page.
- What is the minimum order quantity for HN19/SNL?
- The minimum order quantity is 1.
- Is HN19/SNL available?
- Yes — HN19/SNL is available to order: fulfilment is from supplier stock in cBallast's European network, dispatched directly from the warehouse to the customer, with the exact lead time stated in the quotation (reply within 24 hours).
